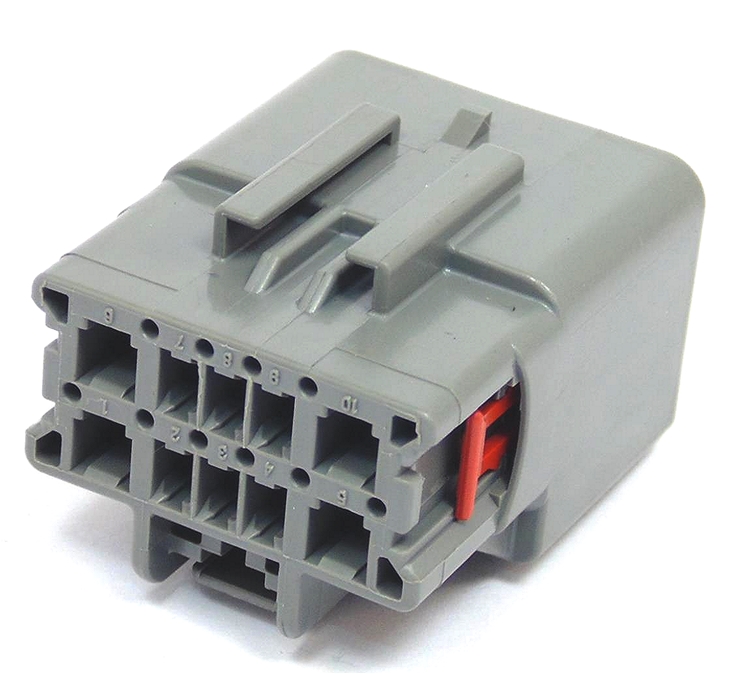

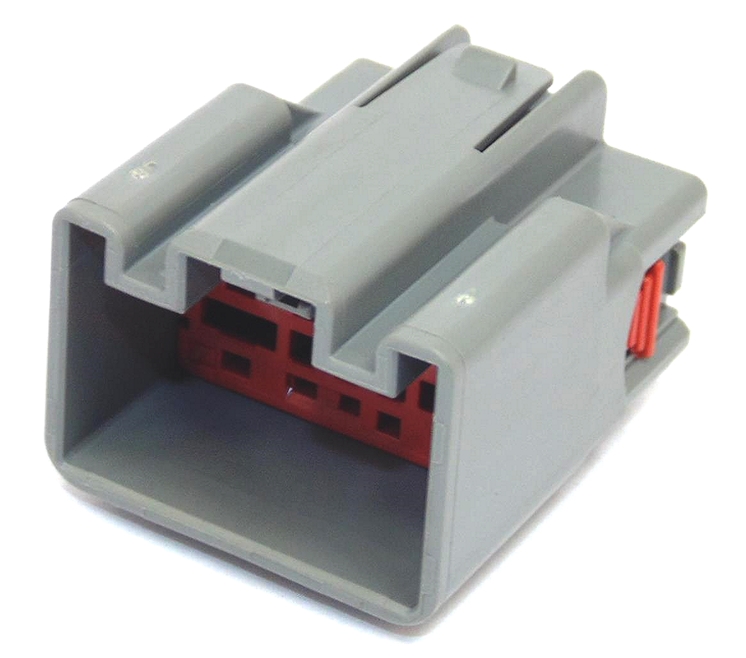

10 Way YAZAKI YES Connector Hybrid (060/110) Male Light Grey

10 Way YAZAKI YES Connector Hybrid (060/110) Male Light Grey
Zoom  Zoom
 10 Way YAZAKI YES Connector Hybrid (060/110) Male Light Grey10 Way YAZAKI YES Connector Hybrid (060/110) Male Light Grey
Our Price:  £3.75(Exc. 20% VAT)
–+

Model:  FG46-7282562140-H
Part Number:  7282-5621-40
Brand:  Yazaki
Product Range:  YES/YESC
Number of Positions:  10
Number of Rows:  2
Gender (terminal):  Male
Colour:  Light Grey
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  30.2mm
Terminal Shape:  Flat
Housing Material:  Heat-resistance Nylon
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  1.5/2.8mm(060/110)

Availability:

150 in stock

150 in stock

Share



Pricing
1-49 £3.75
50-99 £3.38
100-499 £3.19
500+ £2.81













Documents:  Drawing

.

Related Products
YAZAKI YESC 1.5(060) Male Contact 0.85-1.25mm²

YAZAKI YESC 1.5(060) Male Contact 0.85-1.25mm²£0.20

Brand:  YAZAKI
Product Range:  YESC 1.5
Wire Size:  0.85-1.25mm²
Gender:  Male
YAZAKI YESC 2.8(110) Male Contact 0.75-1.25mm²

YAZAKI YESC 2.8(110) Male Contact 0.75-1.25mm²£0.29

Brand:  YAZAKI
Product Range:  YESC 2.8(110)
Wire Size:  0.75-1.25mm²
Gender:  Male
YAZAKI, YES/YESC , Male, Contact, 2.8mm, 2.0-2.5mm²

YAZAKI, YES/YESC , Male, Contact, 2.8mm, 2.0-2.5mm²£0.09

Brand:  YAZAKI
Product Range:  YES/YESC 2.8mm
Wire Size:  2.0-2.5mm²
Gender:  Male
YAZAKI, YES/YESC, Male, Contact, 1.5mm(060), 0.3-0.5mm²

YAZAKI, YES/YESC, Male, Contact, 1.5mm(060), 0.3-0.5mm²£0.31

Brand:  YAZAKI
Product Range:  YES/YESC 1.5mm(060)
Wire Size:  0.3-0.5mm²
Gender: Male
