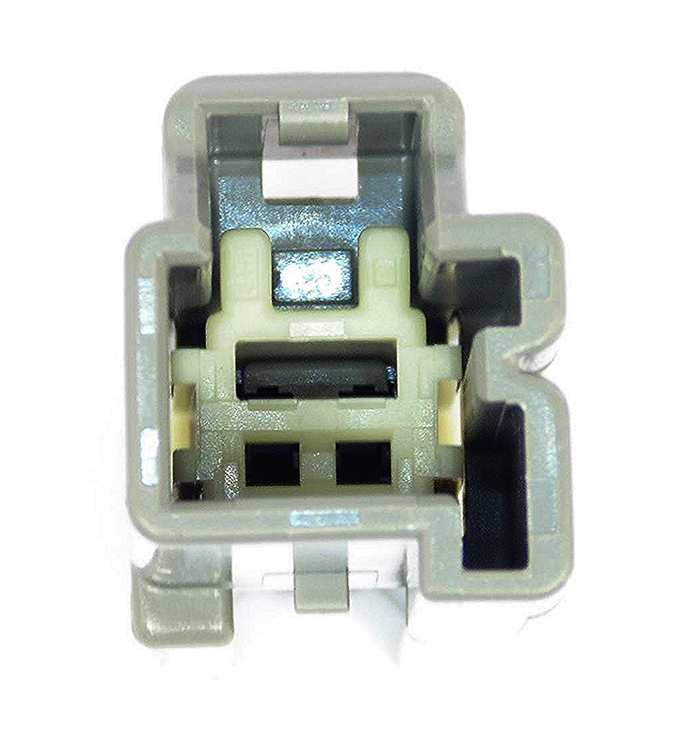

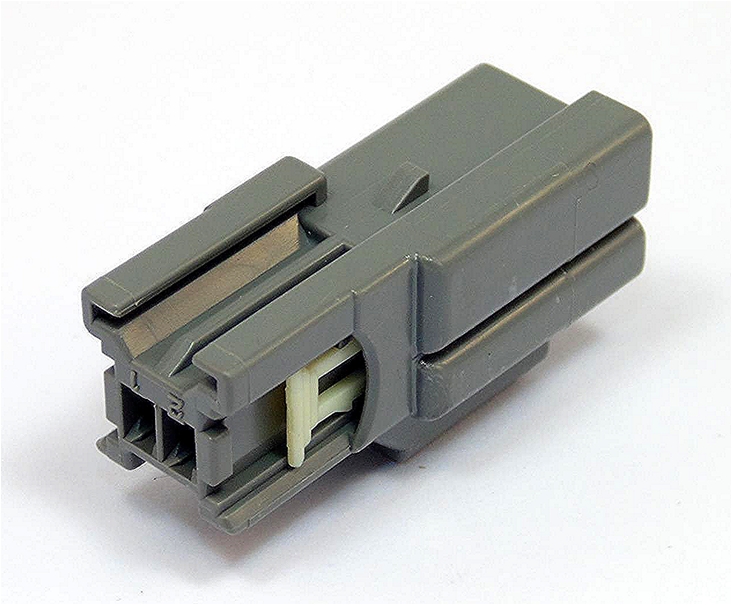

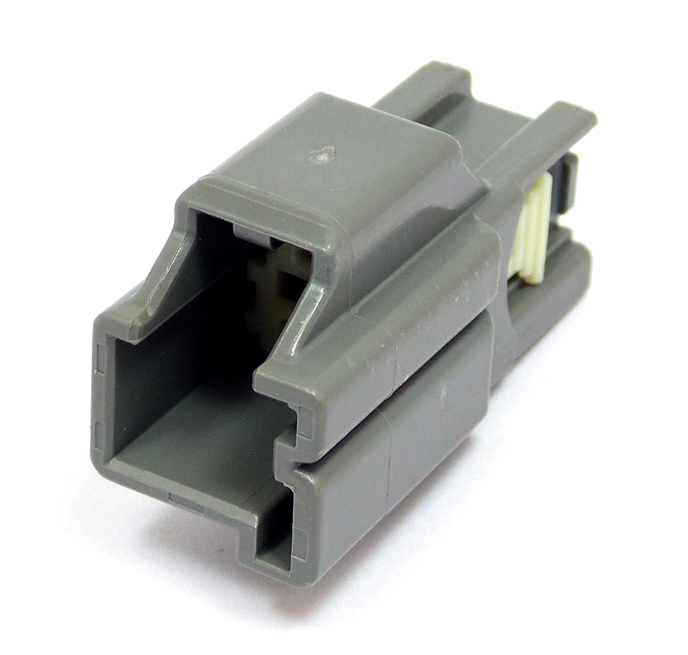

2 Way YAZAKI YES Connector 1.5mm(060) Male Light Grey

2 Way YAZAKI YES Connector 1.5mm(060) Male Light Grey
Zoom  Zoom
2 Way YAZAKI YES Connector 1.5mm(060) Male Light Grey2 Way YAZAKI YES Connector 1.5mm(060) Male Light Grey2 Way YAZAKI YES Connector 1.5mm(060) Male Light Grey
Our Price:  £4.21(Exc. 20% VAT)
+

Model:  FG42-7282553040-H
Part Number:  7282-5530-40
Brand:  Yazaki
Product Range:  YES/YESC
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Male
Colour:  Light Grey
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  13.4mm
Terminal Shape:  Flat
Housing Material:  Heat-resistance Nylon
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  1.5mm(060)

Availability:

70 in stock, immediate despatch

Pricing

1-49

£4.21

50-99 £3.37
100-499 £2.95
500+

£2.10













Documents:  Drawing
