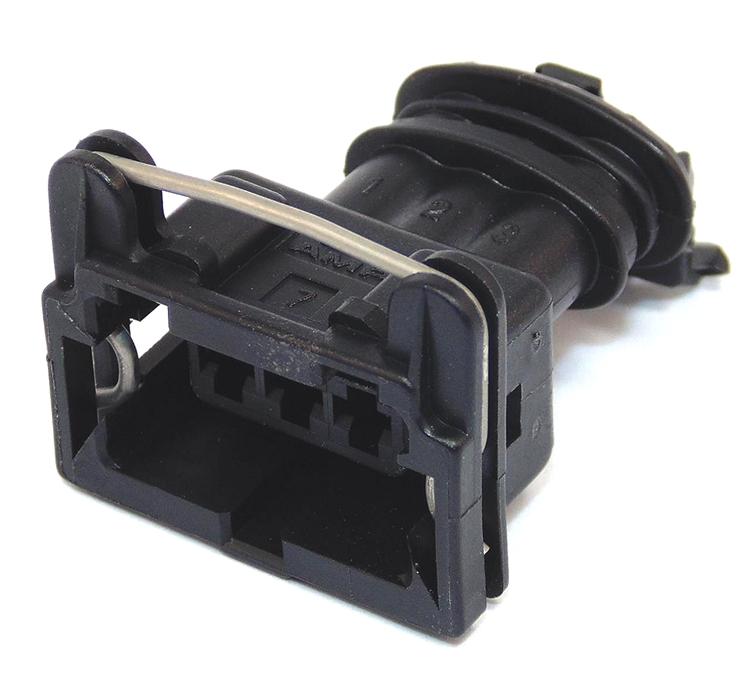

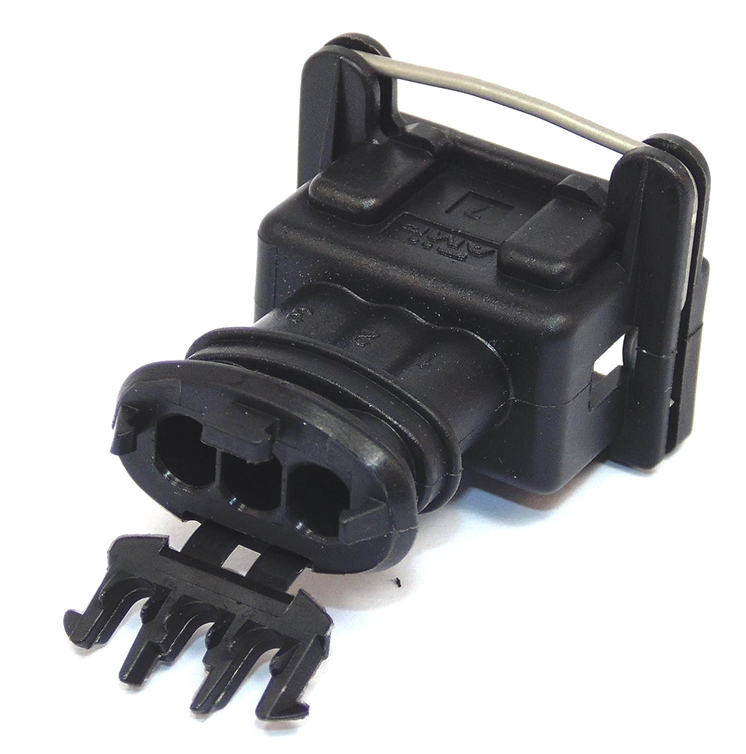

3 Way TE Connectivity Splash Proof Junior Timer Black Female

3 Way TE Connectivity Splash Proof Junior Timer Black Female
Zoom  Zoom
 3 Way TE Connectivity Splash Proof Junior Timer Black Female3 Way TE Connectivity Splash Proof Junior Timer Black Female
Our Price:  £4.25(Exc. 20% VAT)
+

Model:  FG70-2827296-H
Part Number:  282729-6
Brand:  TE Connectivity
Product Range:  JPT
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  23.3mm
Terminal Shape:  Receptical
Housing Material:  PA
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -30⁰C

Availability:

44 in stock, immediate despatch

Pricing

1-99

£4.25

100-499 £3.40
500-999 £2.97
1000+

£2.12













Documents:  Drawing


Special Offer:  Discounts of 20%, 30% and 50% are available when you order 100, 500 and 1,000 items or more of selected products.

Mating Connector:  106462-1
