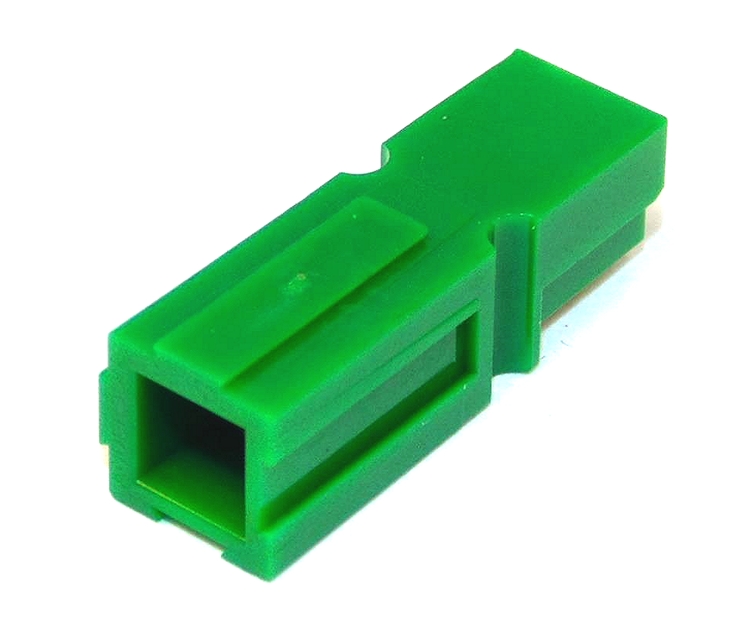

1 Way Anderson Heavy Duty Power Connectors PP15/45 Green

1 Way Anderson Heavy Duty Power Connectors PP15/45 Green
Zoom  Zoom
1 Way Anderson Heavy Duty Power Connectors PP15/45 Green1 Way Anderson Heavy Duty Power Connectors PP15/45 Green1 Way Anderson Heavy Duty Power Connectors PP15/45 Green
Our Price:  £0.83(Exc. 20% VAT)
+

Model:  FS38-1327G5-H
Part Number:  1327G5
Brand:  Anderson
Product Range:  Powerpole
Number of Positions:  1
Number of Rows:  1
Colour:  Green
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  8.4mm
Wire Size (min):  0.75mm²
Wire Size (max):  6.0mm²
Wire Size (awg):  10-20 Awg
Housing Material:  Polycarbonate (PC)
Current Rating:  55A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -20⁰C

Availability:

1 in stock

1 in stock



Pricing

1-99 £0.83
100-499 £0.66
500-999 £0.58
1000+ £0.50













Documents:  Datasheet


.
