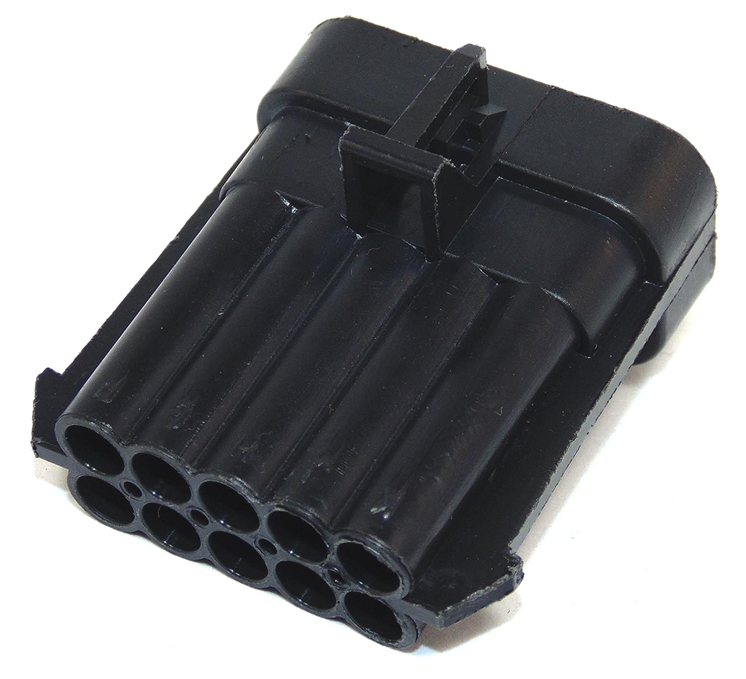

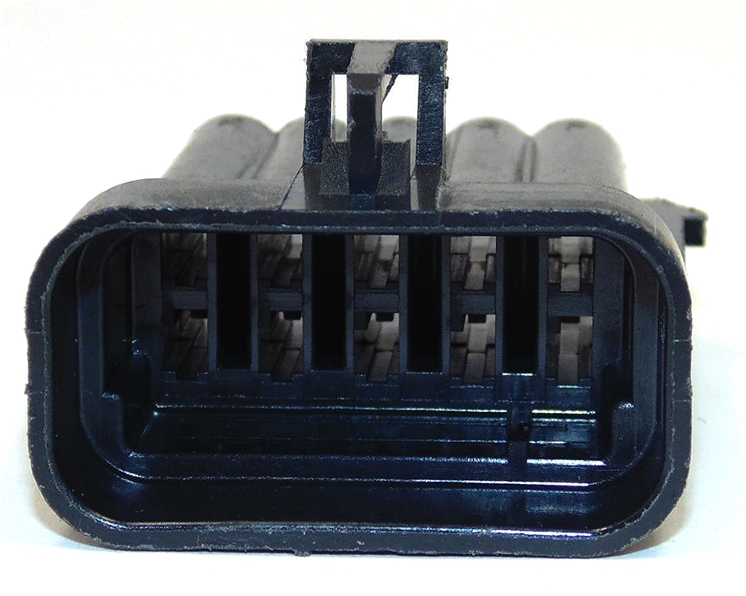

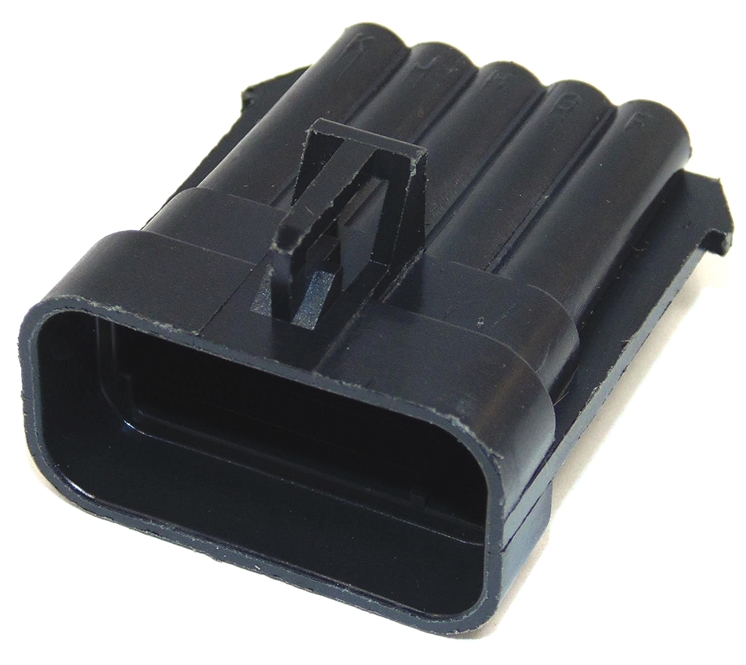

10 Way Delphi Metri-Pack 150 Sealed Connector Male Black

10 Way Delphi Metri-Pack 150 Sealed Connector Male Black
Zoom  Zoom
10 Way Delphi Metri-Pack 150 Sealed Connector Male Black10 Way Delphi Metri-Pack 150 Sealed Connector Male Black10 Way Delphi Metri-Pack 150 Sealed Connector Male Black
Our Price:  £1.18(Exc. 20% VAT)
+

Model:  FI22-12045808-H
Part Number:  12045808
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Number of Positions:  10
Number of Rows:  2
Gender (terminal):  Male
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  38.0mm
Terminal Shape:  Pin
Housing Material:  PBT
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

923 in stock

923 in stock



Pricing

1-49 £1.18
50-99 £0.94
100-499 £0.83
500+ £0.59













Documents:  Drawing


.
