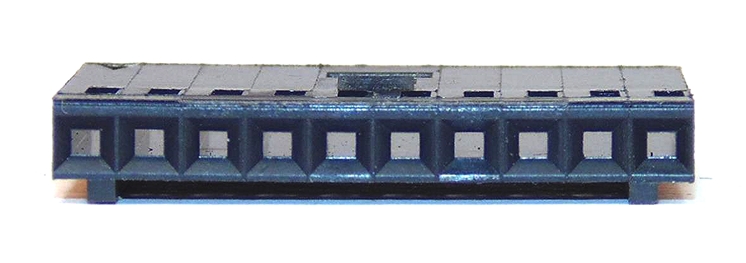

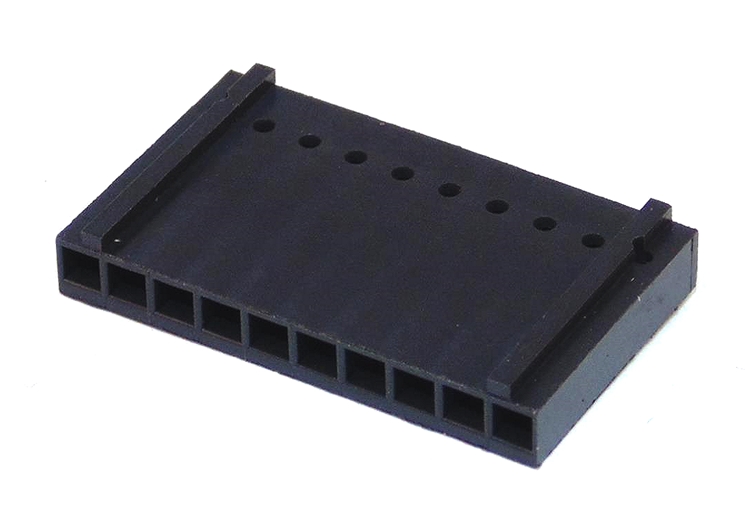

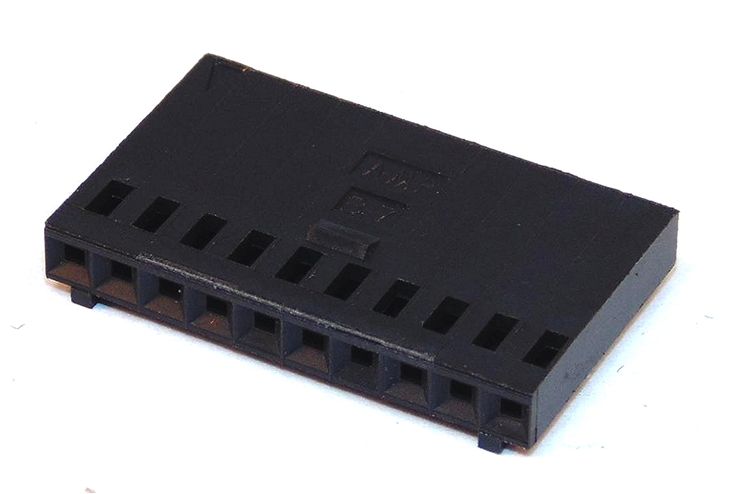

10 Way TE Connectivity MODU IV/V SR.100 Pol Female Black

10 Way TE Connectivity MODU IV/V SR.100 Pol Female Black
Zoom  Zoom
10 Way TE Connectivity MODU IV/V SR.100 Pol Female Black10 Way TE Connectivity MODU IV/V SR.100 Pol Female Black10 Way TE Connectivity MODU IV/V SR.100 Pol Female Black
Our Price:  £1.08(Exc. 20% VAT)
+

Model:  FR42-1022418-H
Part Number:  102241-8
Brand:  TE Connectivity
Product Range:  MODU IV/V
Number of Positions:  10
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Longest Dimension (connector face):  25.45mm
Terminal Shape:  Receptical
Housing Material:  Nylon GF
Current Rating:  3A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -65⁰C

Availability:

126 in stock

126 in stock



Pricing

1-99 £1.08
100-499 £0.97
500-999 £0.89
1000+ £0.81













Documents:   Drawing


Mating Connector: 103414-8
