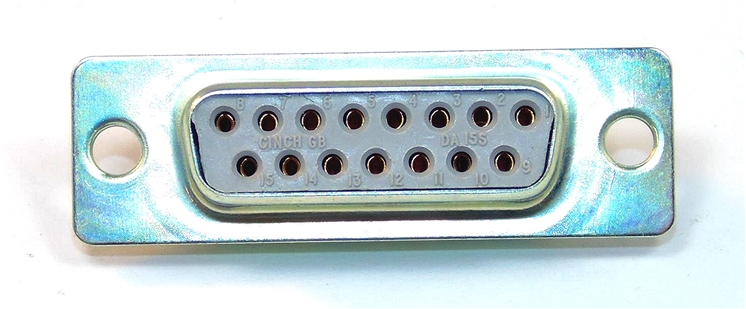

15 Way Panel Mount D-sub Connector Socket

15 Way Panel Mount D-sub Connector Socket
Zoom  Zoom
 15 Way Panel Mount D-sub Connector Socket15 Way Panel Mount D-sub Connector Socket
Our Price:  £3.37(Exc. 20% VAT)
–+

Model:  FO77-DS15S-H
Part Number:  DS15S
Brand:  AC
Product Range  Dsub
Connector Type  Dsub
Number of Positions  15
Number of Rows  2
Gender (terminal)  Female
Sealed/Unsealed  Unsealed
Contact Material  Copper Alloy
Contact Plating  Gold over Nickle
Termination Method  Solder
Housing Material  Steel
Current Rating  5.0A
Maximum Operating Temperature  125⁰C
Minimum Operating Temperature  -65⁰C
Length  39.14mm
Voltage Rating  750V
Width  14.85mm
Shell Size  A

Availability

4 in stock

4 in stock

Share



Pricing
1-99 £3.37
100-499 £2.70
500-999 £2.36
1000+ £2.02













Documents:



.
