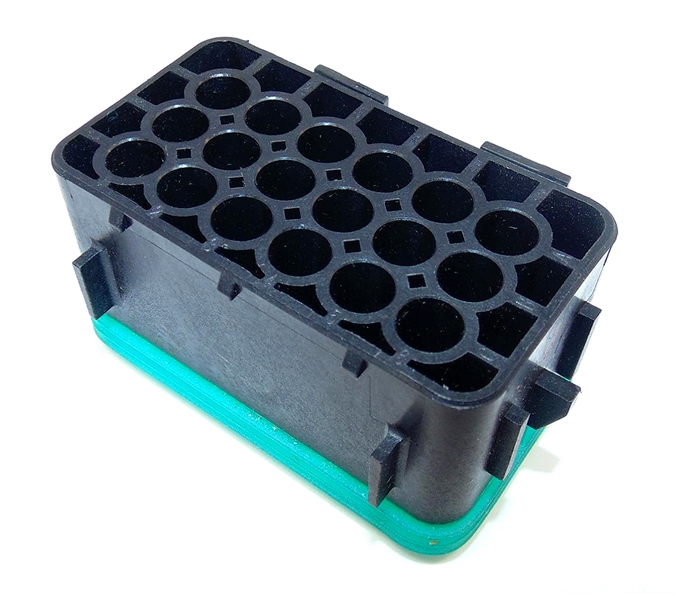

18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components

18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components
Zoom  Zoom
18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components18 Way Delphi HWB18 Sealed Power Distribution Module for 280 Style Components
Our Price:  £17.95(Exc. 20% VAT)
–+

Model:  EA74-PDM31002ZXM-H
Part Number:  PDM31002ZXM
Brand:  Delphi (Aptiv)
Product Range  HWB
Number of Positions  18
Number of Rows  3
Gender (terminal)  Female
Colour  Black
Sealed/Unsealed  Sealed
Longest Dimension (connector face)  59mm
Current Rating  30A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  2.8mm(110)

Availability

147 in stock

147 in stock

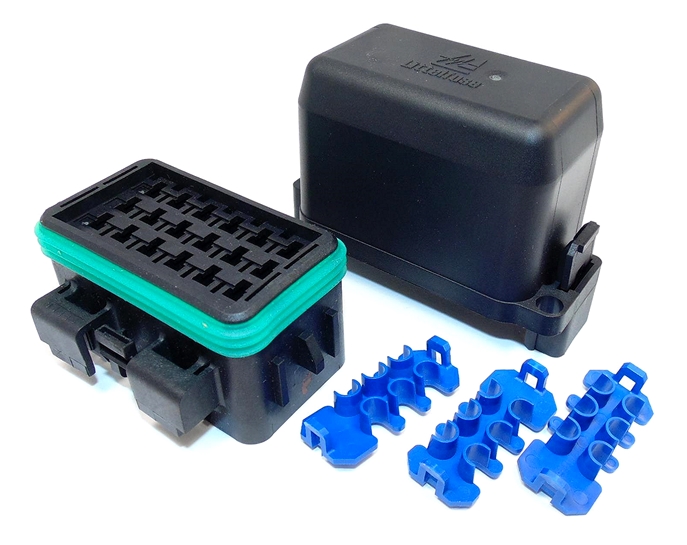

Blue Secondary lock for use with PDM31002ZXM
Qty:  3
Share



Pricing
1-9 £17.95
10-49 £14.36
50-99 £12.57
100+ £10.77













Documents:   Datasheet

                                  HWB Selection Guide

Fuses, relays, terminals and seals sold separately.
