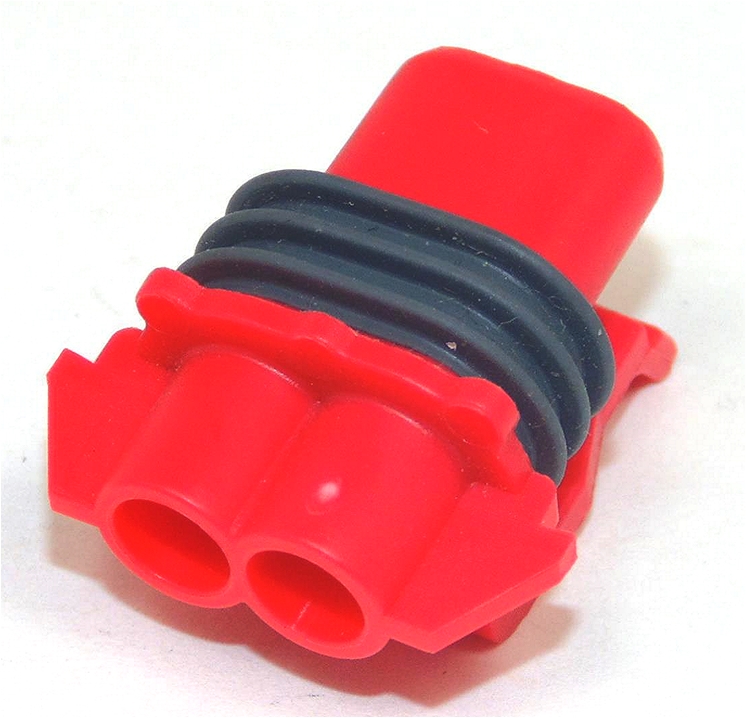

2 Way Delphi Metri-Pack 150 Sealed Red Female

2 Way Delphi Metri-Pack 150 Sealed Red Female
Zoom  Zoom
 2 Way Delphi Metri-Pack 150 Sealed Red Female2 Way Delphi Metri-Pack 150 Sealed Red Female
Our Price:  £1.54(Exc. 20% VAT)
+

Model:  FD59-12052643-H
Part Number:  12052643
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150 Series
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Red
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  12.6mm
Terminal Shape:  Receptical
Housing Material:  Nylon
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

114 in stock

114 in stock



Pricing

1-9 £1.54
10-49 £1.23
50-99 £1.08
100+ £0.92













Documents:  Drawing


.
