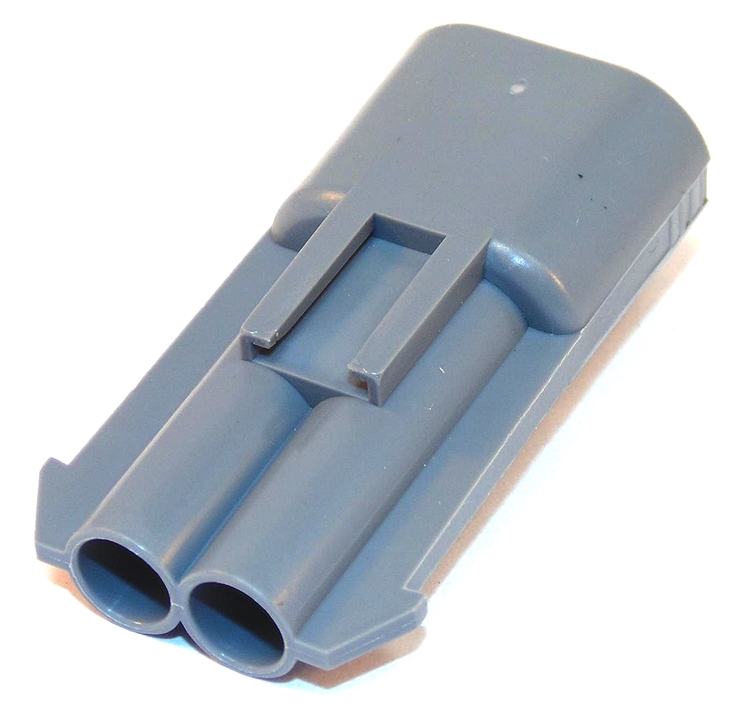

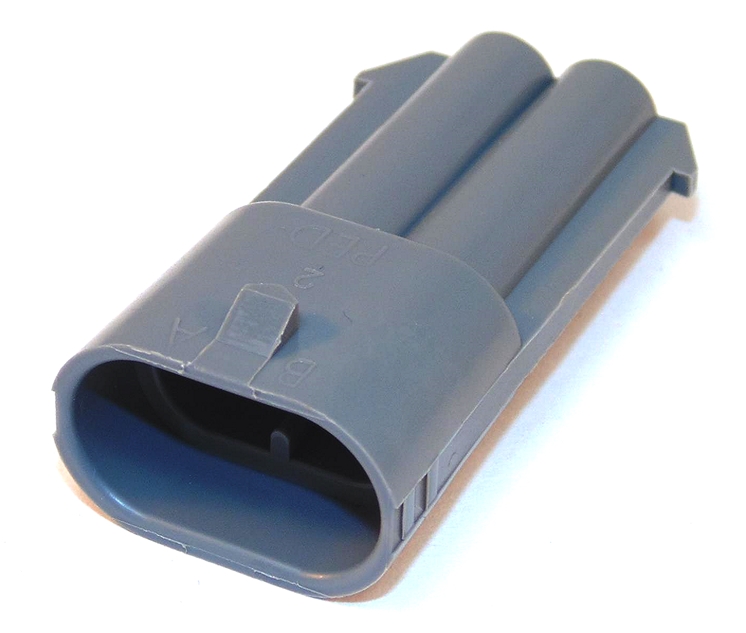

2 Way Delphi Metri-Pack 280 Male 2.8mm(110) Grey

2 Way Delphi Metri-Pack 280 Male 2.8mm(110) Grey
Zoom  Zoom
2 Way Delphi Metri-Pack 280 Male 2.8mm(110) Grey2 Way Delphi Metri-Pack 280 Male 2.8mm(110) Grey2 Way Delphi Metri-Pack 280 Male 2.8mm(110) Grey
Our Price:  £0.80(Exc. 20% VAT)
–+

Model:  FR67-12084166-H
Part Number:  12084166
Brand:  Delphi (Aptiv)
Product Range  Metri-Pack 280
Number of Positions  2
Number of Rows  1
Gender (terminal)  Male
Colour  Grey
Sealed/Unsealed  Sealed
Longest Dimension (connector face)  25.0mm
Terminal Shape:  Flat
Housing Material  PA 66
Current Rating  30A
Maximum Operating Temperature  125⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  2.8mm(110)

Availability

3,980 in stock

3,980 in stock

Share



Pricing
1-99 £0.80
100-499 £0.64
500-999 £0.56
1000+ £0.40













Documents:   Datasheet

Mating Connector: 12059181
