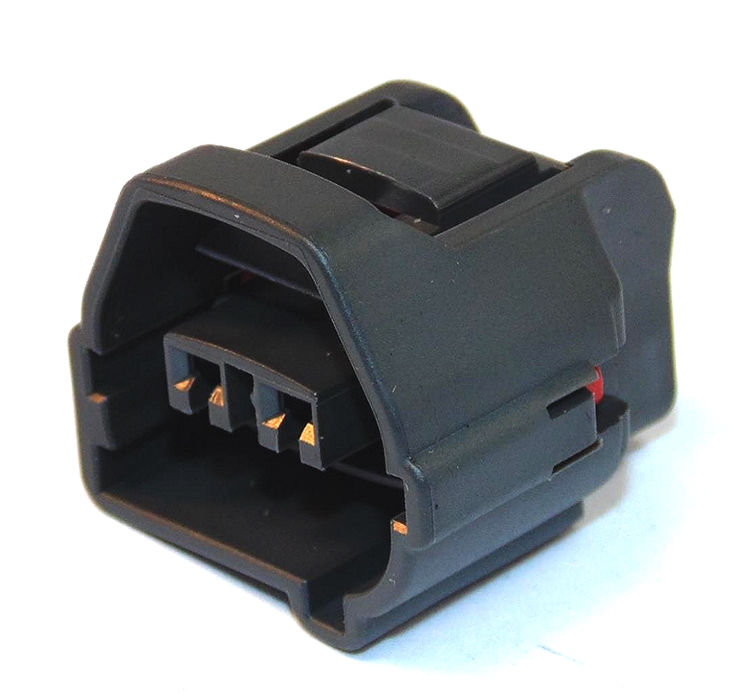

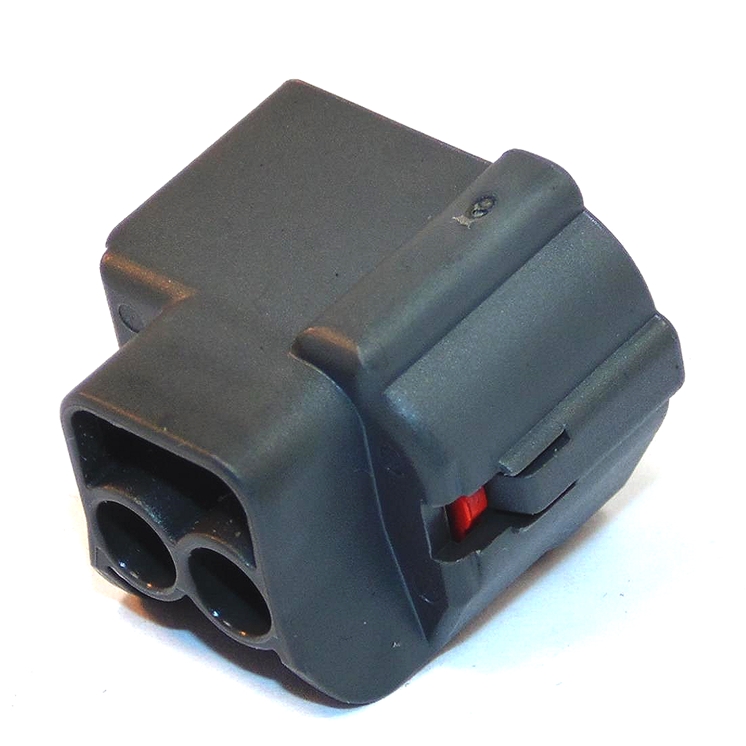

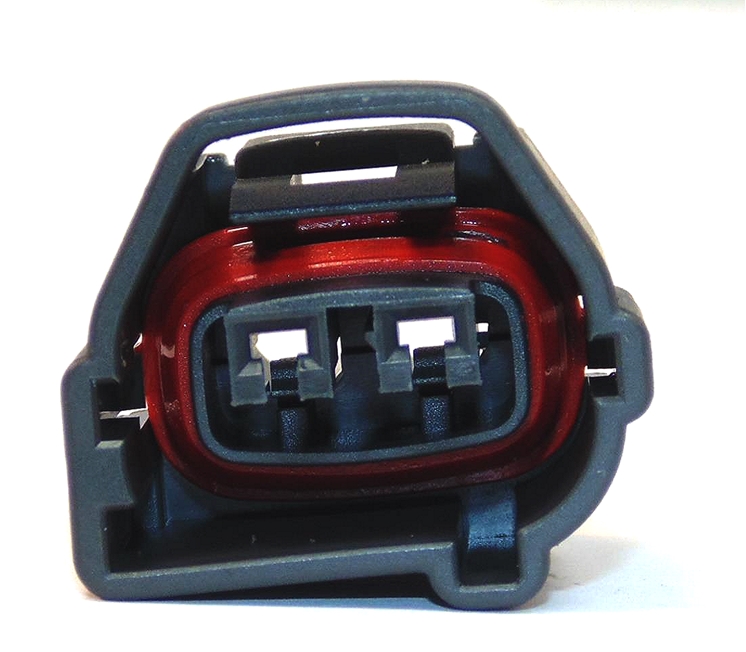

2 Way Yazaki 2.3II(090II) Dark Grey Female

2 Way Yazaki 2.3II(090II) Dark Grey Female
Zoom  Zoom
2 Way Yazaki 2.3II(090II) Dark Grey Female2 Way Yazaki 2.3II(090II) Dark Grey Female2 Way Yazaki 2.3II(090II) Dark Grey Female
Our Price:  £3.14(Exc. 20% VAT)
+

Model:  FO08-7283702310-H
Part Number:  7283-7023-10
Brand:  Yazaki
Product Range:  2.3II (090II)
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Dark Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  25.66mm
Terminal Shape:  Receptical
Housing Material:  PBT
Maximum Operating Temperature:  120⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.3mm(090)

Availability:

28 in stock

28 in stock



Pricing

1-9 £3.14
10-49 £2.51
50-99 £2.20
100+ £1.88













Documents:  Drawing


Mating Part 7282-7023-10
