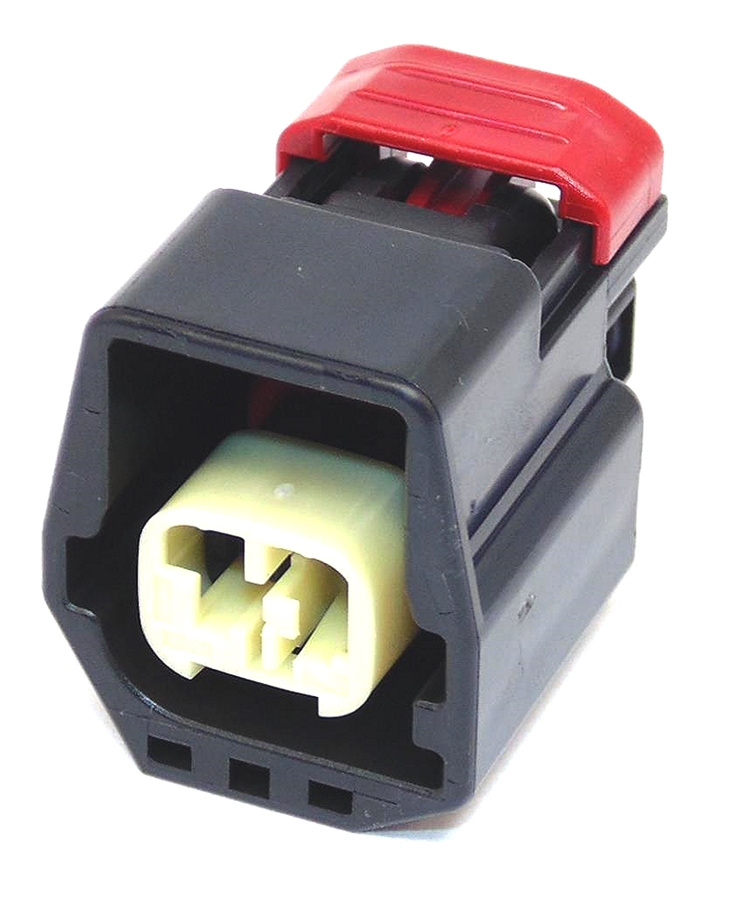

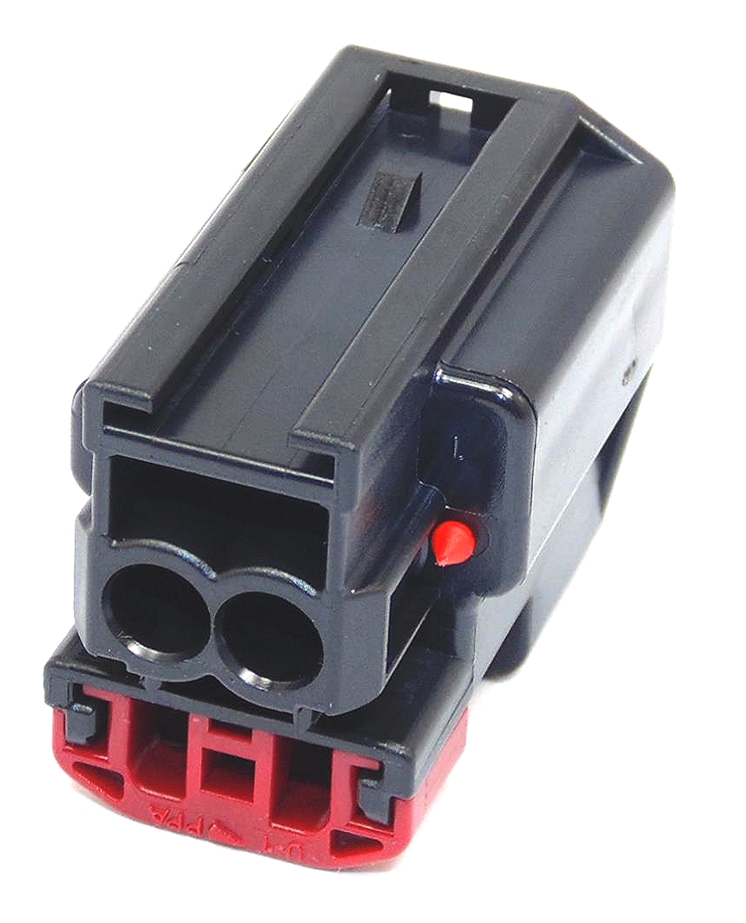

2 Way YAZAKI YES/YESC Connector 1.5mm(060) Female Black

2 Way YAZAKI YES/YESC Connector 1.5mm(060) Female Black
Zoom  Zoom
 2 Way YAZAKI YES/YESC Connector 1.5mm(060) Female Black2 Way YAZAKI YES/YESC Connector 1.5mm(060) Female Black
Our Price:  £4.90(Exc. 20% VAT)
+

Model:  FH14-7283554930-H
Part Number:  7283-5549-30
Brand:  Yazaki
Product Range  YES/YESC Kaizen
Number of Positions  2
Number of Rows  1
Gender (terminal)  Female
Colour  Black
Sealed/Unsealed  Sealed
Longest Dimension (connector face)  23.2mm
Terminal Shape:  Receptical
Housing Material  Heat-resistance Nylon
Maximum Operating Temperature  100⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  1.5mm(060)

Availability

20 in stock

20 in stock



Pricing

1-49 £4.90
50-99 £3.92
100-499 £3.43
500+ £2.94













Documents:  Drawing


.
