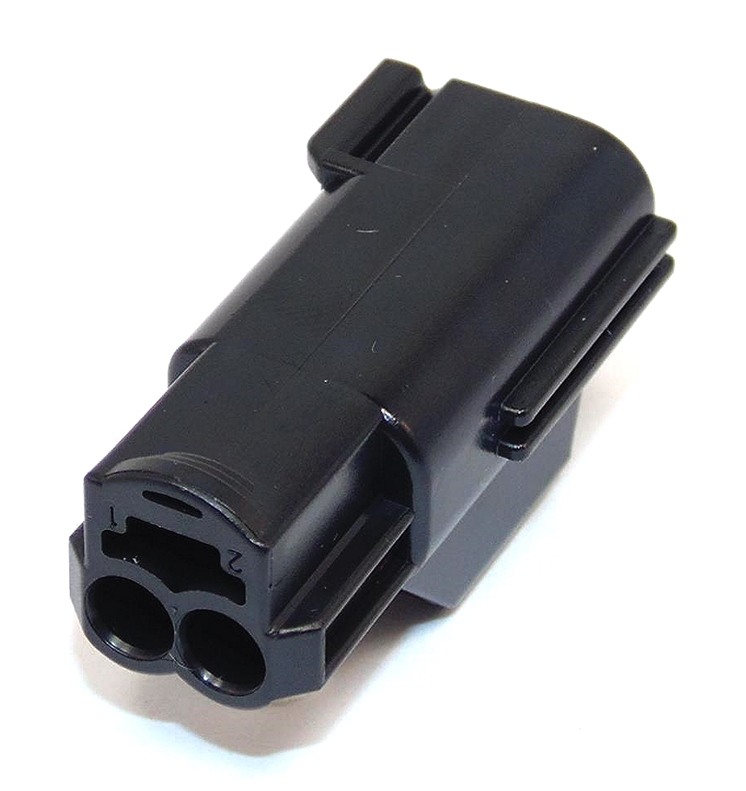

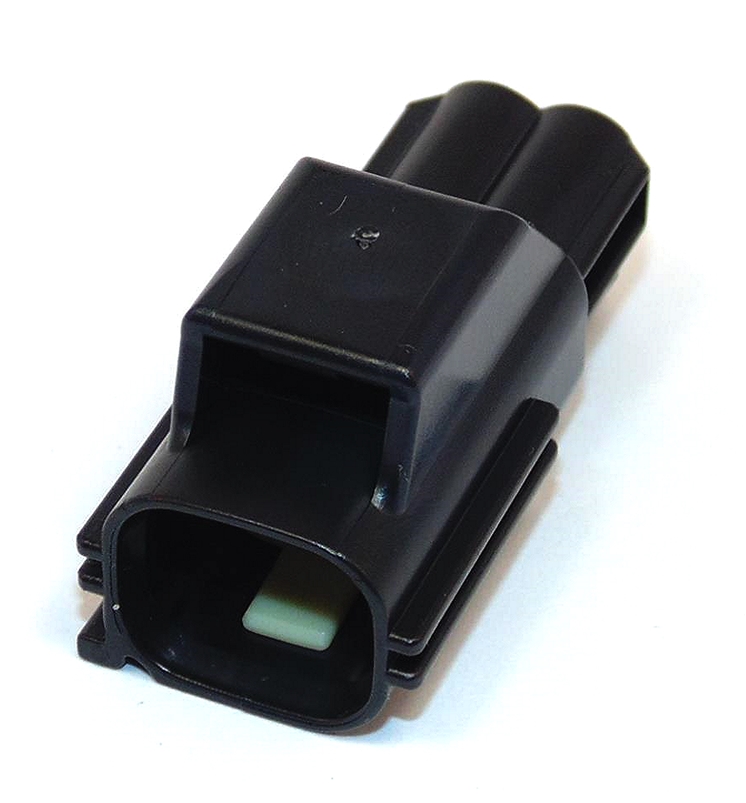

2 Way YAZAKI YES/YESC Kaizen Connector 1.5mm(060) Male Black

2 Way YAZAKI YES/YESC Kaizen Connector 1.5mm(060) Male Black
Zoom  Zoom
 2 Way YAZAKI YES/YESC Kaizen Connector 1.5mm(060) Male Black2 Way YAZAKI YES/YESC Kaizen Connector 1.5mm(060) Male Black
Our Price:  £1.95(Exc. 20% VAT)
–+

Model:  FH09-7282554830-H
Part Number:  7282-5548-30
Brand:  Yazaki
Product Range:  YES/YESC Kaizen
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Male
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  19.8mm
Terminal Shape:  Flat
Housing Material:  Heat-resistance Nylon
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  1.5mm(060)

Availability:

65 in stock, immediate despatch

Pricing
1-49

£1.95
50-99 £1.56
100-499 £1.36
500+

£1.17













Documents:  Drawing

.
