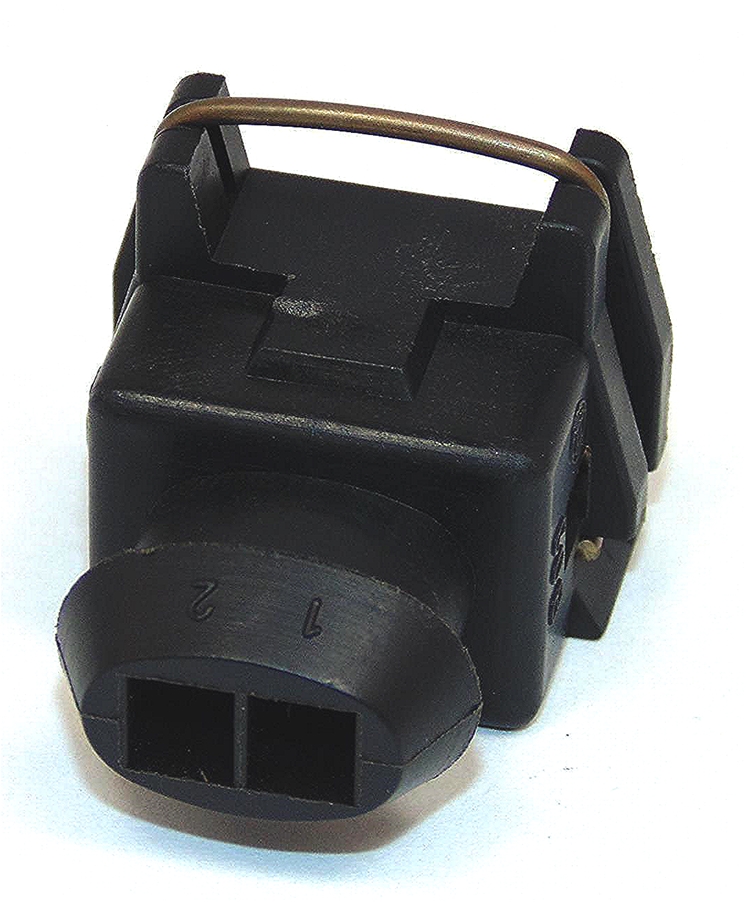

2 Way Bosch Jetronic Plug Housing

Model:  FB11-1284485110-H
Part Number:  1 284 485 110
Brand:  Bosch
Product Range:  Junior Timer
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  29.2mm
Terminal Shape:  Flat
Housing Material:  PA 66 GF
Maximum Operating Temperature:  130⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.8mm

Documents:  Drawing
