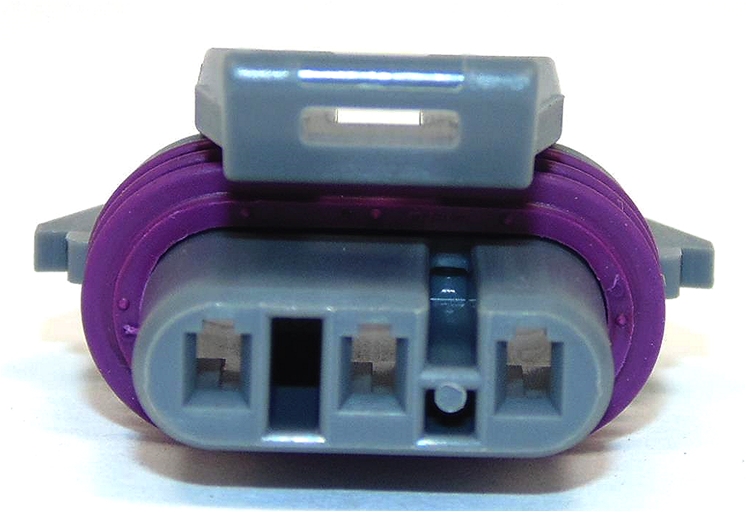

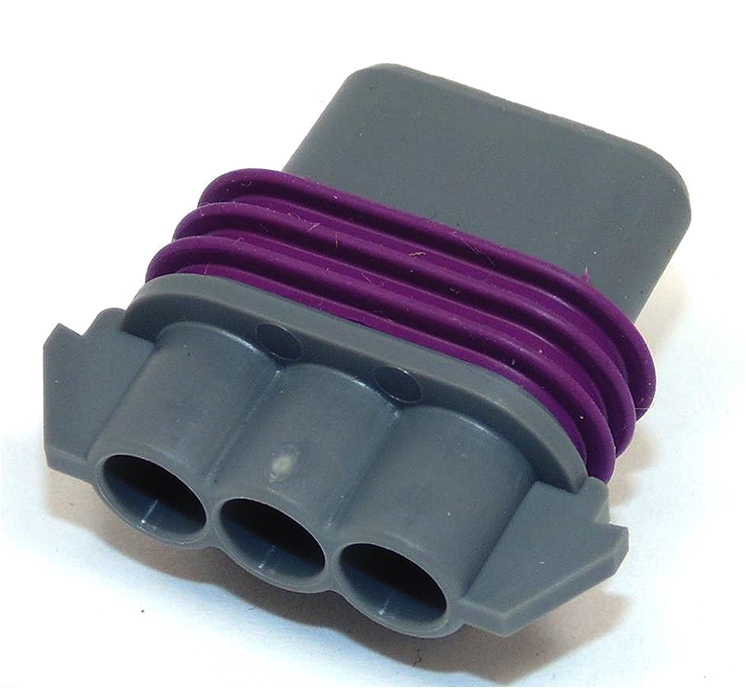

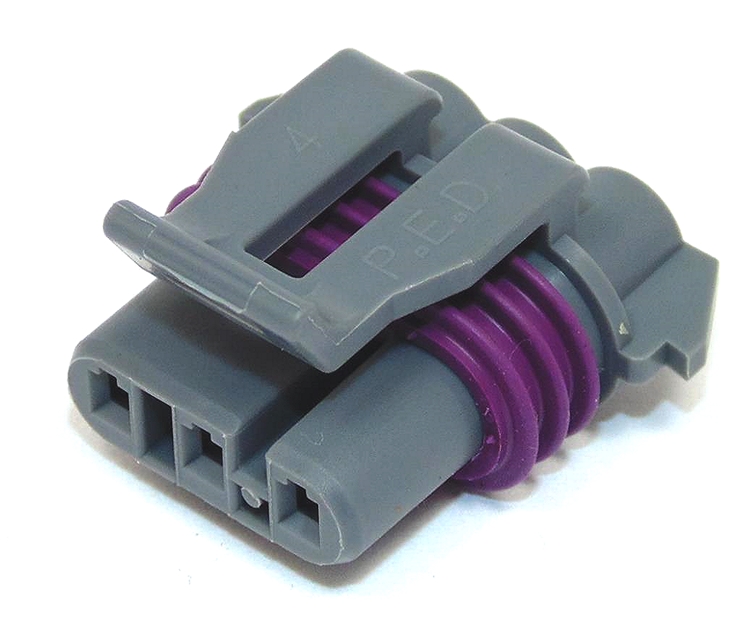

3 Way Delphi Metri-Pack 150 Female Grey

3 Way Delphi Metri-Pack 150 Female Grey
Zoom  Zoom
3 Way Delphi Metri-Pack 150 Female Grey3 Way Delphi Metri-Pack 150 Female Grey3 Way Delphi Metri-Pack 150 Female Grey
Our Price:  £1.20(Exc. 20% VAT)
+

Model:  FI43-12129946-H
Part Number:  12129946
Brand:  Delphi
Product Range:  Metri-Pack 150 Series
Number of Positions:  3
Number of Rows:  1
Gender (terminal):  Female
Colour:  Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  18.7mm
Terminal Shape:  Receptical
Housing Material:  Nylon
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

450 in stock, immediate despatch

Pricing

1-99

£1.20

100-499 £0.96
500-999 £0.84
1000+

£0.60













Documents:   Drawing


Special Offer:  Discounts of 20%, 30% and 50% are available when you order 100, 500 and 1,000 items or more of selected products.
