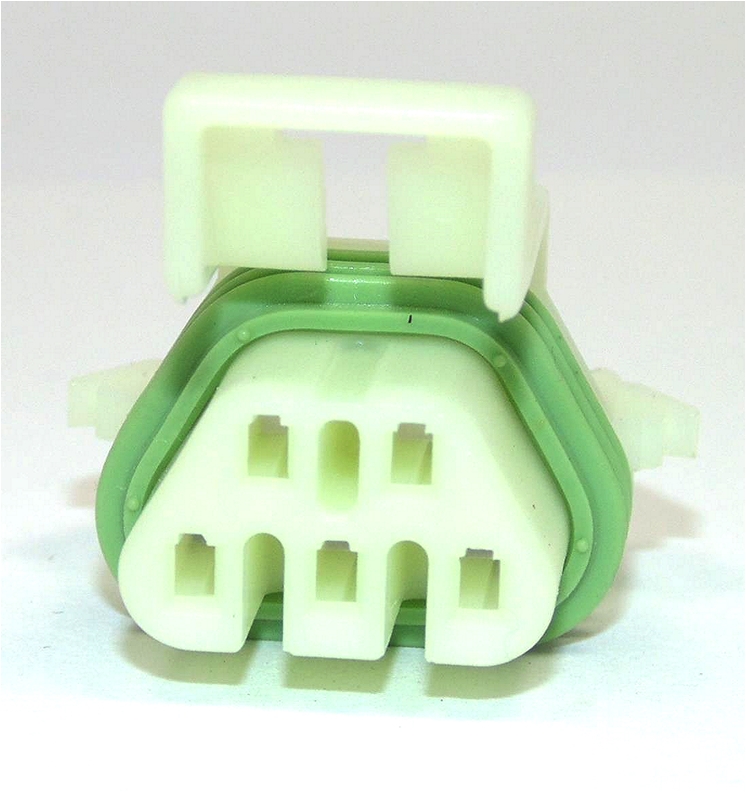

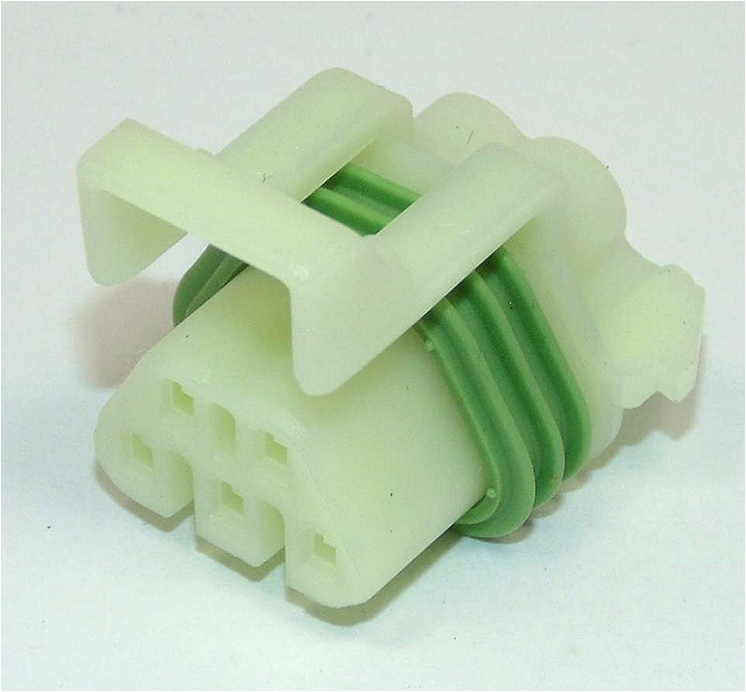

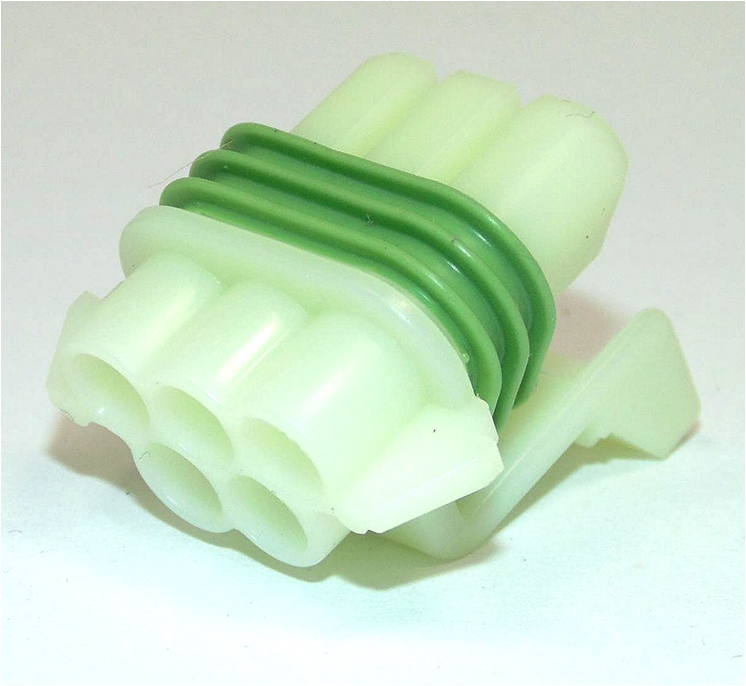

5 Way Delphi Metri-Pack 150 Sealed Series Female Cream

5 Way Delphi Metri-Pack 150 Sealed Series Female Cream
Zoom  Zoom
5 Way Delphi Metri-Pack 150 Sealed Series Female Cream5 Way Delphi Metri-Pack 150 Sealed Series Female Cream5 Way Delphi Metri-Pack 150 Sealed Series Female Cream
Our Price:  £1.42(Exc. 20% VAT)
–+

Model:  FI37-12146045-H
Part Number:  12146045
Brand:  Delphi
Product Range:  Metri-Pack 150 Series
Number of Positions:  5
Number of Rows:  2
Gender (terminal):  Female
Colour:  Natural
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  18.3mm
Terminal Shape:  Receptical
Housing Material:  Nylon
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

890 in stock
Share



Pricing
1-99 £1.42
100-499 £1.14
500-999 £0.99
1000+ £0.71













Documents:   Drawing

.
