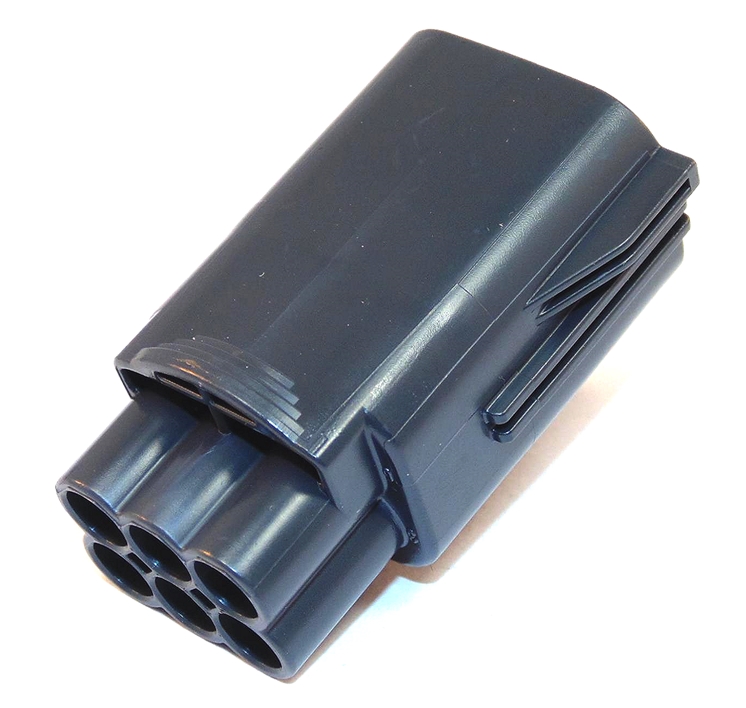

6 Way Yazaki YES/YESC Kaizen Male 2.8mm(110) Dark Grey

6 Way Yazaki YES/YESC Kaizen Male 2.8mm(110) Dark Grey
Zoom  Zoom
6 Way Yazaki YES/YESC Kaizen Male 2.8mm(110) Dark Grey6 Way Yazaki YES/YESC Kaizen Male 2.8mm(110) Dark Grey6 Way Yazaki YES/YESC Kaizen Male 2.8mm(110) Dark Grey
Our Price:  £3.83(Exc. 20% VAT)
–+

Model:  FR20-7282557710-H
Part Number:  7282-5577-10
Brand:  Yazaki
Product Range  YES/YESC Kaizen
Number of Positions  6
Number of Rows  2
Gender (terminal)  Male
Colour  Dark Grey
Sealed/Unsealed  Sealed
Longest Dimension (connector face)  31.9mm
Terminal Shape:  Flat
Housing Material  Heat-resistance Nylon
Maximum Operating Temperature  100⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  2.8mm(110)

Availability

99 in stock

99 in stock

Share



Pricing
1-9 £3.83
10-49 £3.06
50-99 £2.68
100+ £2.30













Documents:    Datasheet


Mating part numbers: 7283-5577-10 & 7283-5926-10
