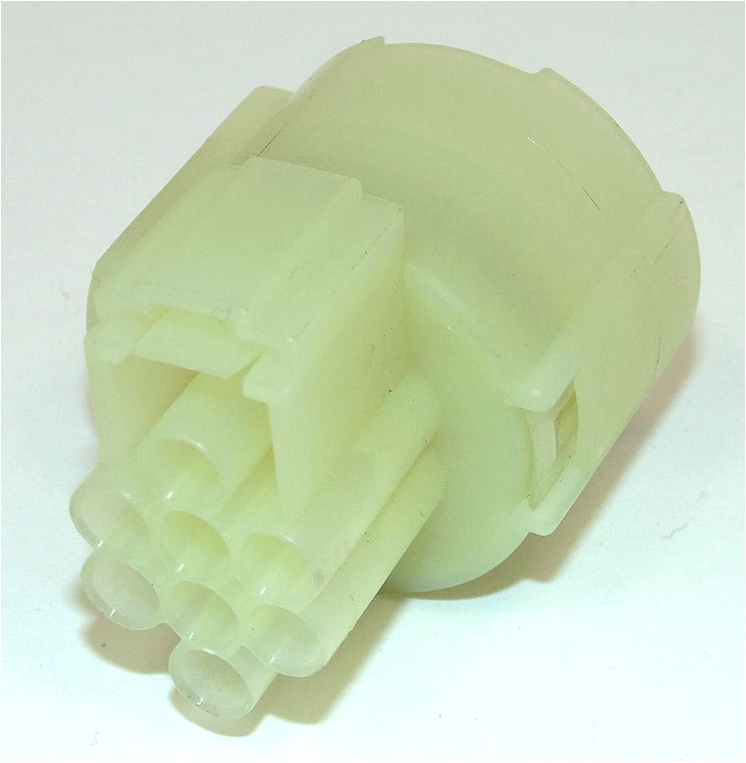

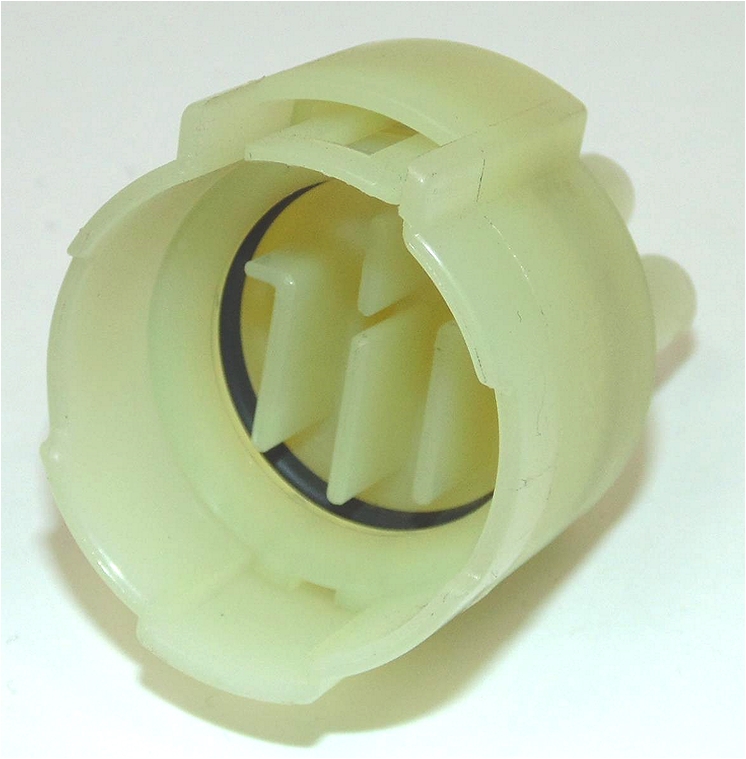

8 Way Sumitomo HM Sealed Series Male 2.3mm(090) Natural

8 Way Sumitomo HM Sealed Series Male 2.3mm(090) Natural
Zoom  Zoom
 8 Way Sumitomo HM Sealed Series Male 2.3mm(090) Natural8 Way Sumitomo HM Sealed Series Male 2.3mm(090) Natural
Our Price:  £4.40(Exc. 20% VAT)
–+

Model:  FE01-61878691-H
Part Number:  6187-8691
Brand:  Sumitomo
Product Range:  HM Sealed Series
Number of Positions:  8
Number of Rows:  3
Gender (terminal):  Male
Colour:  Natural
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  36.7mm
Terminal Shape:  Flat
Housing Material:  66 Nylon
Tab Width:  2.3mm(090)

Availability:

No stock, delayed despatch

Pricing
1-49

£4.40
50-99 £3.96
100-499 £3.74
500+

£3.52













Documents:  Drawing

.

Related Products
Sumitomo 090(2.3mm) Male Contact 0.3-1.25mm˛

Sumitomo 090(2.3mm) Male Contact 0.3-1.25mm˛£0.16

Brand:  Sumitomo
Product Range:  090(2.3mm) HW,MT,HM
Wire Size:  0.3-1.25mm²
Gender:  Male
Dummy Seal Sumitomo 090(2.3mm) Black MT/HW/HM Series

Dummy Seal Sumitomo 090(2.3mm) Black MT/HW/HM Series£0.34

Brand:  Sumitomo
Wire Size:
Maximum Cavity Diameter:  5.6mm
Product Range:  MT/HW/HM Series
Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm˛

Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm˛£0.12

Brand:  Sumitomo
Wire Size:  0.3-1.25mm²
Maximum Cavity Diameter:  5.6mm
Product Range:  MT/HW/HM Series
8 Way Sumitomo HM Sealed Series Natural Round Female

8 Way Sumitomo HM Sealed Series Natural Round Female£6.26

Brand:  Sumitomo
Product Range:  HM Sealed Series
Number of Positions:  8
Gender (terminal):  Female
