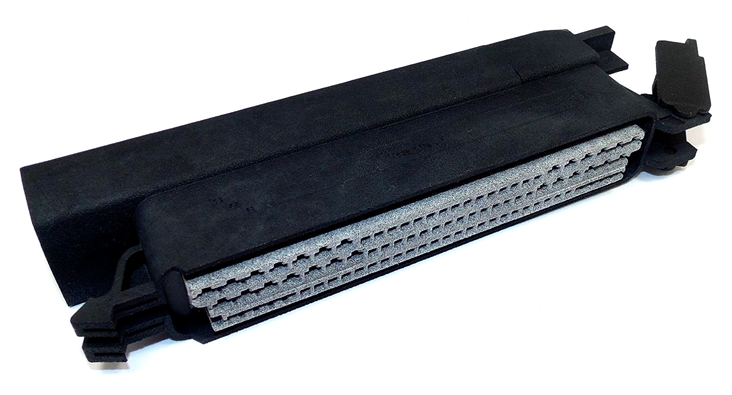

88 Way Bosch ECU Connector Kit inc. Terminals (1928402028 Cover)

88 Way Bosch ECU Connector Kit inc. Terminals (1928402028 Cover)
Zoom  Zoom
Our Price:  £141.56(Exc. 20% VAT)
–+

Model:  EA11-1928401587-K
Part Number:  1 928 401 587
Brand:  Bosch
Number of Positions  88
Number of Rows  3
Gender (terminal)  Female
Colour  Black/Neutral
Sealed/Unsealed  Sealed
Longest Dimension (connector face)  137.5mm
Termination Method  Crimp
Terminal Shape:  Receptical
Maximum Operating Temperature  85⁰C
Minimum Operating Temperature  -40⁰C

Availability

1 in stock

1 in stock

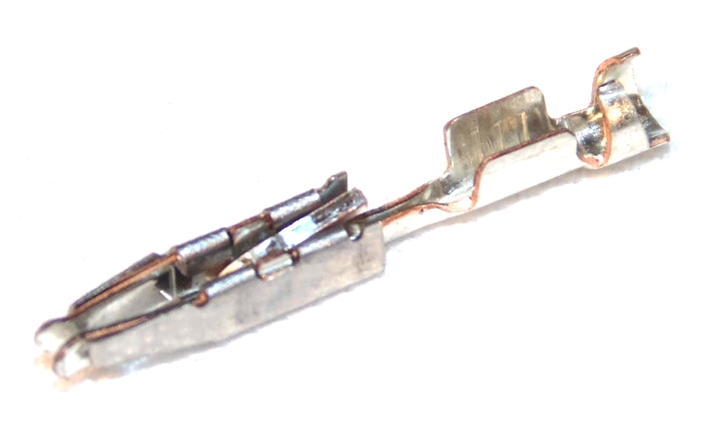

TE AMP Micro Timer 1 Terminal 18-22awgTE AMP Micro Timer 1 Terminal 18-22awg
Qty:  62

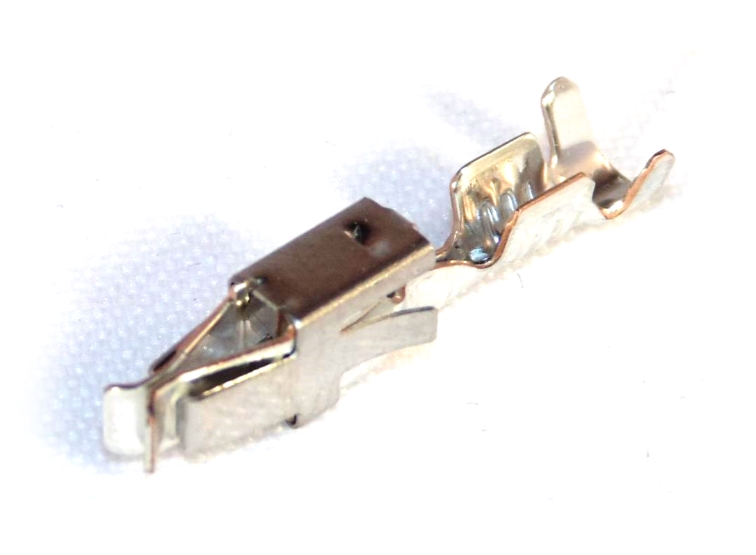

TE Junior Timer Socket Terminal 17-22awgTE Junior Timer Socket Terminal 17-22awg
Qty:  26

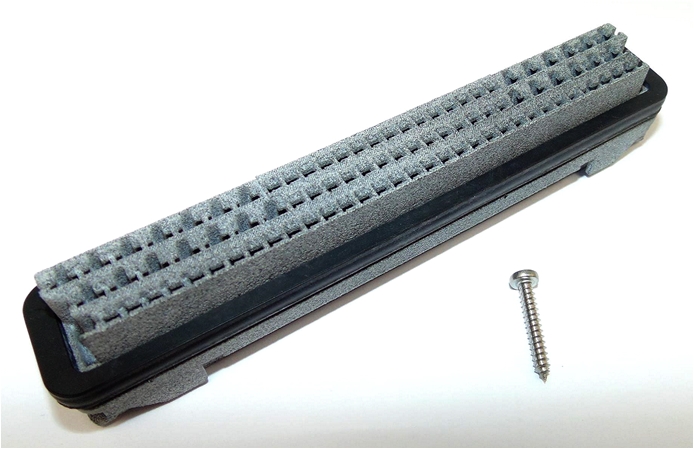

Replacement for 88 Way Bosch ECU Connector Housing Assembly (No Cover/Hood)Replacement for 88 Way Bosch ECU Connector Housing Assembly (No Cover/Hood)

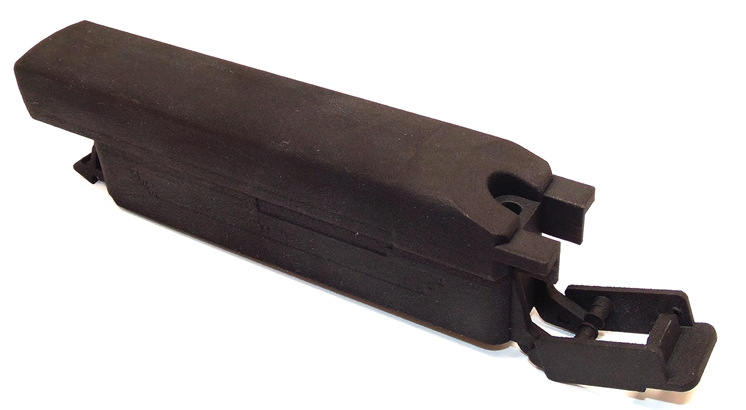

88 Way Boch ECU Cover Replacement (1928402028)88 Way Boch ECU Cover Replacement (1928402028)
Share



Pricing
1-9 £141.56
10-49 £127.40
50-99 £113.25
100+ £106.17













Documents:  Drawing

The hood/cover for this part is no longer the original Bosch part but instead a direct replacement.

The contact carrier is no longer the original Bosch part but instead a direct replacement.

Please note that the part number for the cover/hood with this part is 1 928 402 028.
