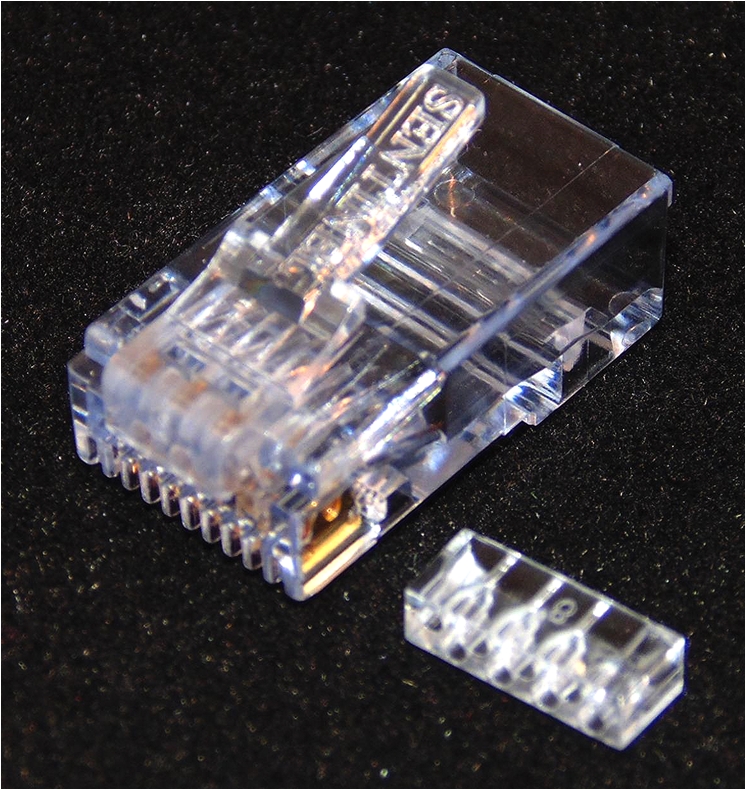

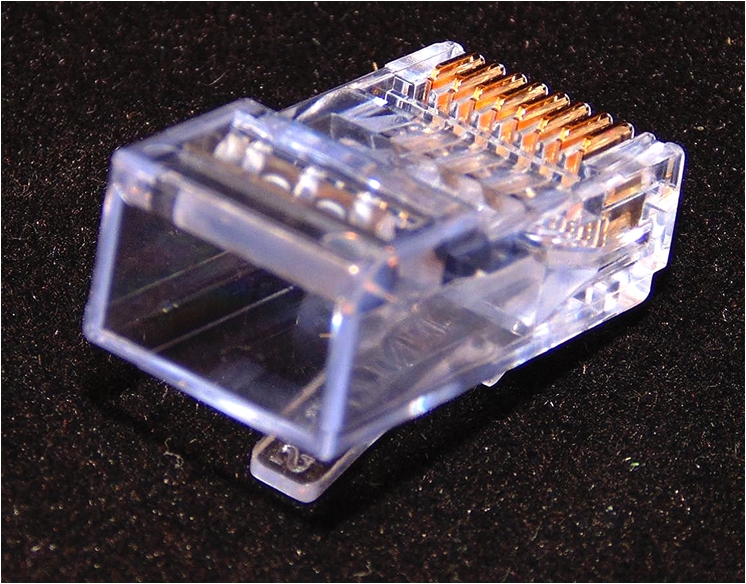

8P8C Sentinel RJ45 Cat5e Male Unshielded

Model:  FO98-1110808LB1634-H
Part Number:  111-0808LB16-34
Brand:  Sentinel
Connector Type  RJ45
Number of Positions  8
Number of Rows  1
Gender (terminal)  Male
Longest Dimension (connector face)  11.7mm
Contact Material  Bronze
Contact Plating  Gold over Nickle
Termination Method  IDC
Housing Material  Polycarbonate (PC)
Maximum Operating Temperature  70⁰C
Minimum Operating Temperature  -40⁰C
Voltage Rating  30Vac

Availability

7 in stock

Documents:   Drawing
