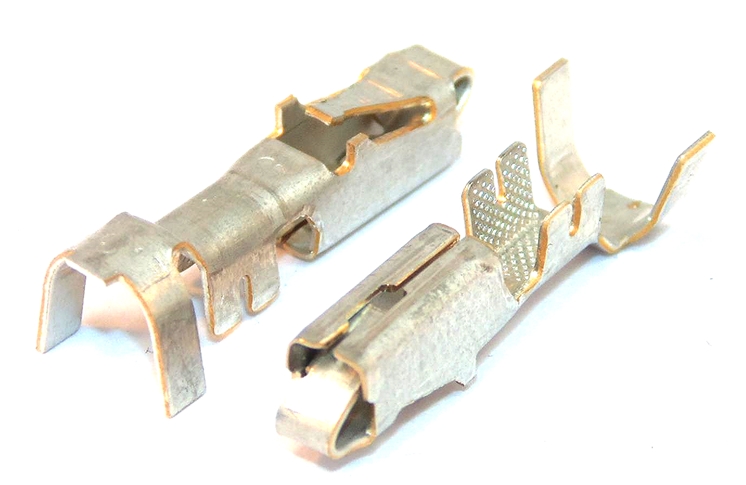

Delphi Aptiv Metri-Pack 280 Female 2.0-3.0mm²

Delphi Aptiv Metri-Pack 280 Female 2.0-3.0mm²
Zoom  Zoom
Our Price:  £0.24(Exc. 20% VAT)
+

Model:  EA85-12129493-T
Part Number:  12129493
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 280
Gender:  Female
Wire Size (min):  2.0mm²
Wire Size (max):  3.0mm²
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Receptical
Current Rating:  30A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.8mm(110)

Availability:

224 in stock

224 in stock



Pricing

1-99 £0.24
100-499 £0.19
500-999 £0.17
1000+ £0.14













Documents:  Drawing


.
