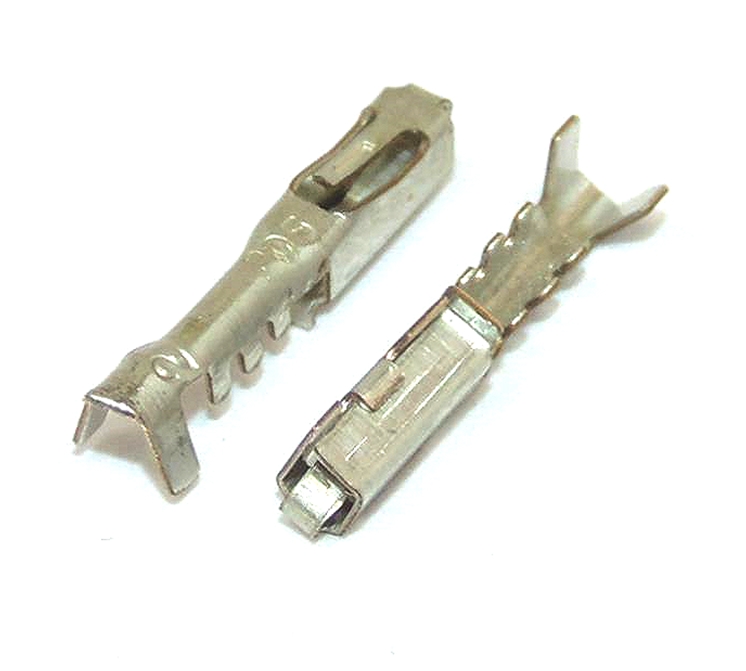

Delphi Metri-Pack 150 Female 0.35-0.5mm²

Model:  FI60-12064971-T
Part Number:  12064971
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Gender:  Female
Wire Size (min):  0.35mm²
Wire Size (max):  0.50mm²
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Receptical
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  1.3-2.2mm

Availability:

8,634 in stock

Documents:  Drawing
