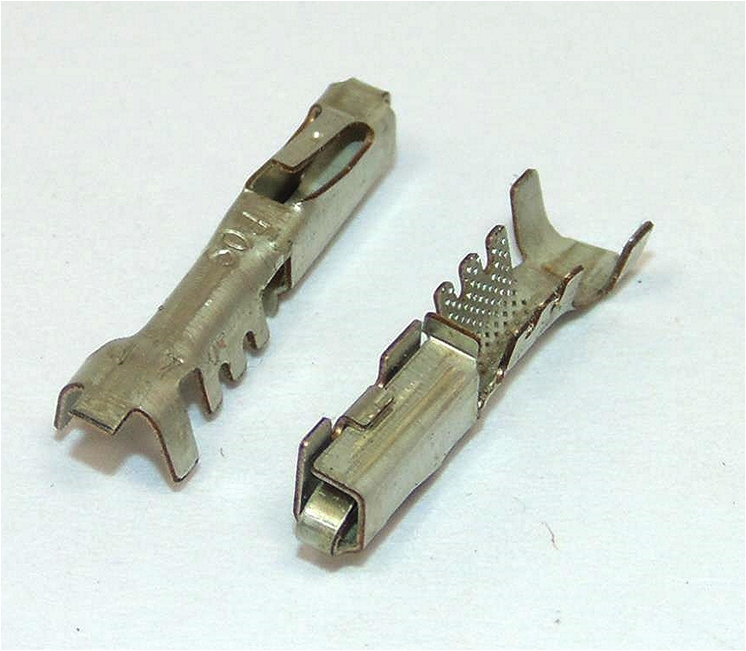

Delphi Metri-Pack 150 Female 0.8-1.0mm²

Model:  FI59-12047767-T
Part Number:  12047767
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Gender:  Female
Wire Size (min):  0.8mm²
Wire Size (max):  1.0mm²
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Receptical
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  1.7-2.4mm

Documents:  Drawing
