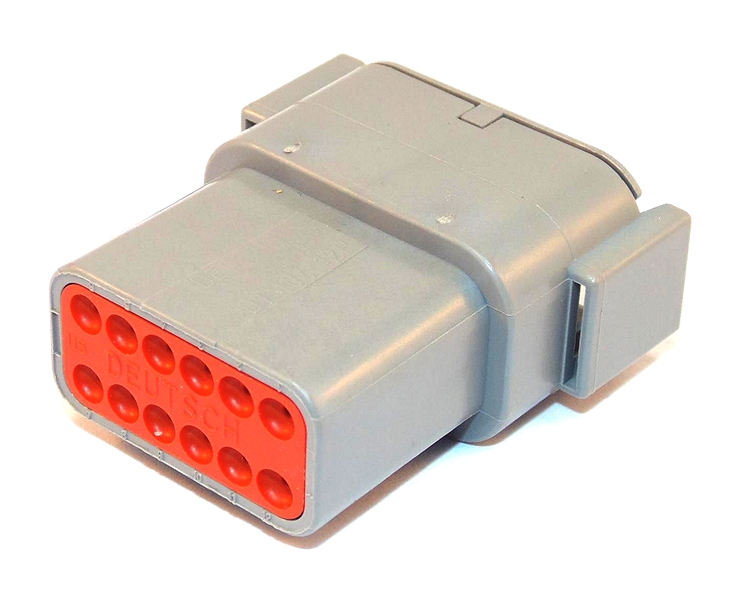

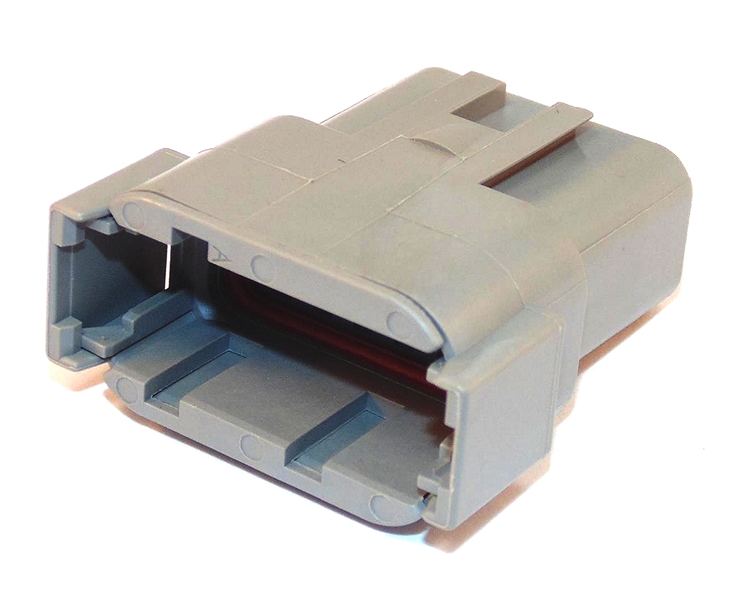

DEUTSCH 12 Way Male DTM Grey

Model:  FP56-DTM0412P-H
Part Number:  DTM04-12P
Brand:  DEUTSCH
Alternative Part Number:  DTM04-12PA
Product Range:  DTM
Number of Positions:  12
Number of Rows:  2
Gender (terminal):  Male
Colour:  Grey
Sealed/Unsealed:  Sealed
Wire Size (awg):  24-20awg
Housing Material:  PA GF
Current Rating:  7.5 A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -55⁰C

Documents:  Drawing

                                DTM Series
