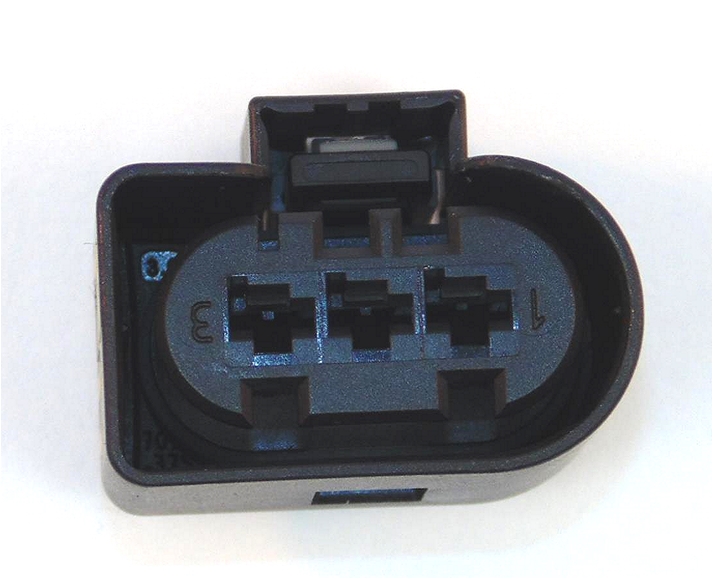

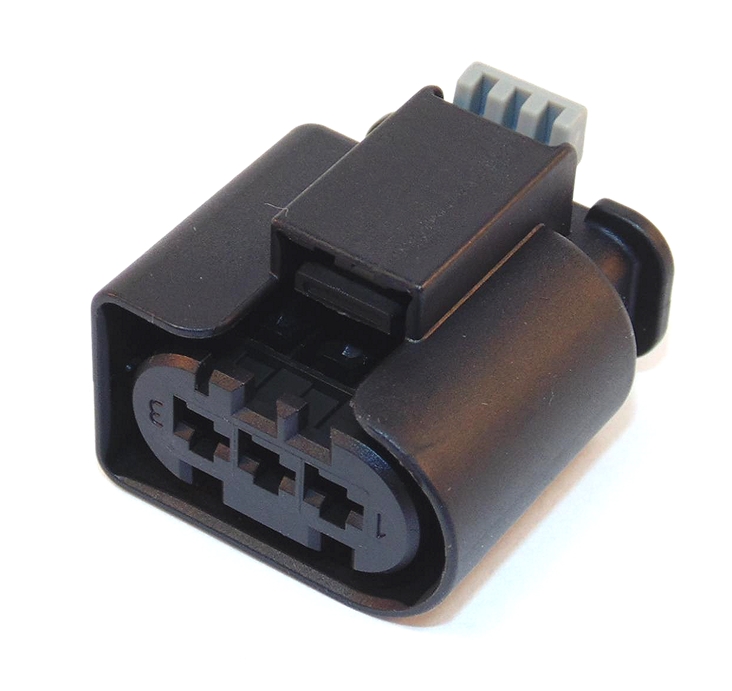

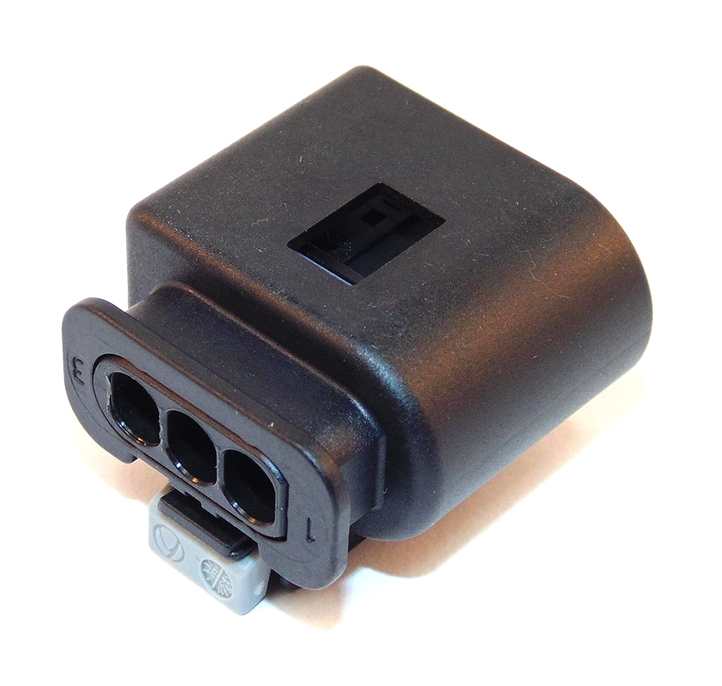

Hirschmann 3 Way 2.8 SealStar FA connector Female Black Code A

Hirschmann 3 Way 2.8 SealStar FA connector Female Black Code A
Zoom  Zoom
Hirschmann 3 Way 2.8 SealStar FA connector Female Black Code AHirschmann 3 Way 2.8 SealStar FA connector Female Black Code AHirschmann 3 Way 2.8 SealStar FA connector Female Black Code A
Our Price:  £5.88(Exc. 20% VAT)
+

Model:  KA07-805199521-H
Part Number:  805-199-521
Brand:  Hirschmann
Product Range:  SealStar 2.8
Number of Positions:  3
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  27.7mm
Terminal Shape:  Receptical
Housing Material:  PA GF
Maximum Operating Temperature:  150⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.8mm

Availability:

302 in stock

302 in stock



Pricing

1-49 £5.88
50-99 £4.70
100-499 £4.12
500+ £3.53













Documents:  Drawing


.
