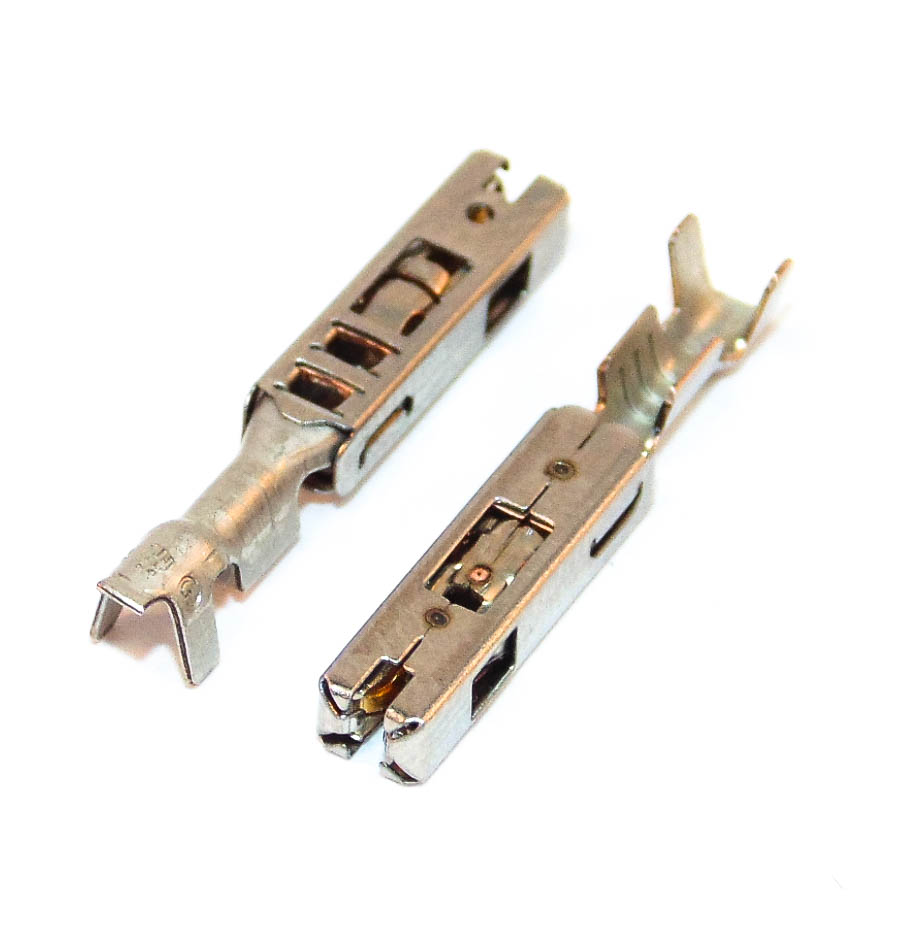

TE Connectivity 1.5mm SFC Female 0.5-1.0mm²

Model:  FU38-9290271-T
Part Number:  929027-1
Brand:  TE Connectivity
Product Range  1.5mm SFC
Gender  Female
Wire Size (min)  0.5mm²
Wire Size (max)  1.0mm²
Wire Size (awg)  20-17 Awg
Contact Material  Gold
Contact Plating  Gold
Termination Method  Crimp
Terminal Shape:  Receptical
Current Rating  12A
Maximum Operating Temperature  150 °C
Minimum Operating Temperature  -40 °C
Wire Insulation Diameter  1.4-2.1mm
Tab Width  1.5mm(060)

Availability

372 in stock

Documents:  Datasheet
