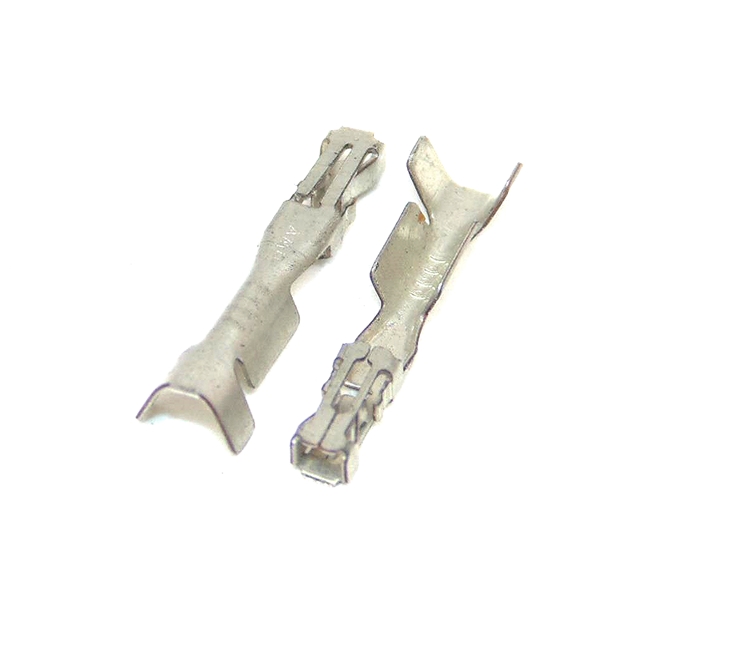

TE Connectivity, AMPMODU IV/V Female Contact 20-24awg 0.2-0.6mm²

Model:  FA39-1674181-T
Part Number:  167418-1
Brand:  TE Connectivity
Product Range:  AMPMODU IV/V
Gender:  Female
Wire Size (min):  0.2mm²
Wire Size (max):  0.6mm²
Wire Size (awg):  24-20 awg
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -65⁰C

Documents:  Drawing
