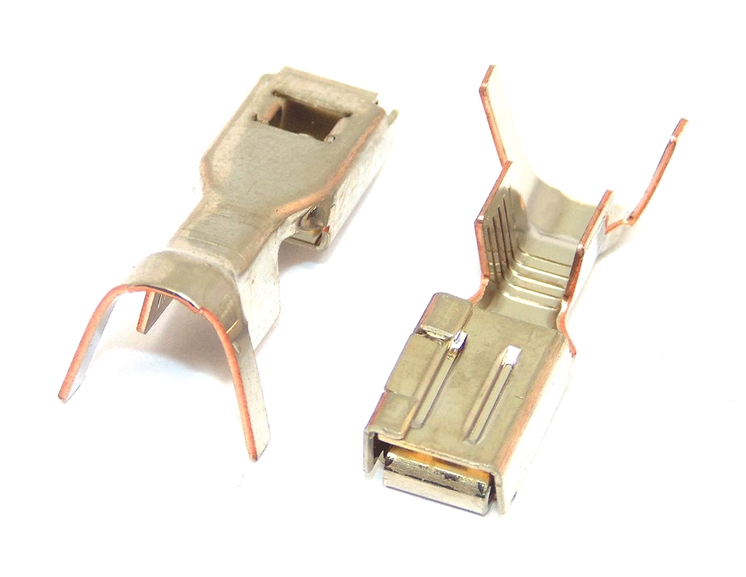

TE Connectivity Dynamic 5000 Series Female 8 Awg

Model:  FH52-13186972-T
Part Number:  1318697-2
Brand:  TE Connectivity
Product Range:  Dynamic 5000
Gender:  Female
Wire Size (min):  7.95mm²
Wire Size (max):  8.92mm²
Wire Size (awg):  8 Awg
Contact Material:  Copper Alloy
Contact Plating:  Gold
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  30A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C
Wire Insulation Diameter:  4.9-7.8mm

Documents:  Drawing
