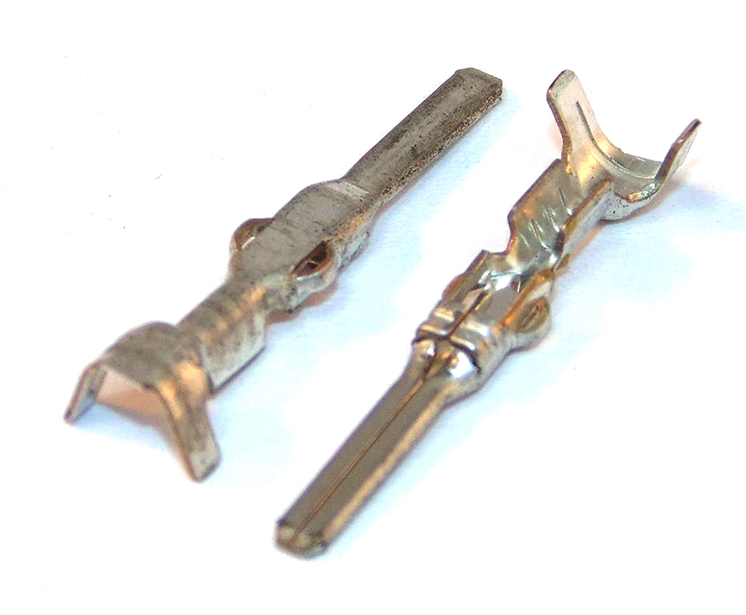

TE Connectivity Econoseal J MK2 1.8mm 070 24-20 Awg Male

Model:  FQ09-1716311-T
Part Number:  171631-1
Brand:  TE Connectivity
Product Range  Econoseal-J Mark II
Gender  Male
Sealed/Unsealed  Sealed
Wire Size (min)  0.2mm²
Wire Size (max)  0.5mm²
Wire Size (awg)  24-20 Awg
Contact Material  Tin
Contact Plating  Gold
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  6A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Tab Width  1.8mm(070)

Availability

1,400 in stock

Documents:   Drawing
