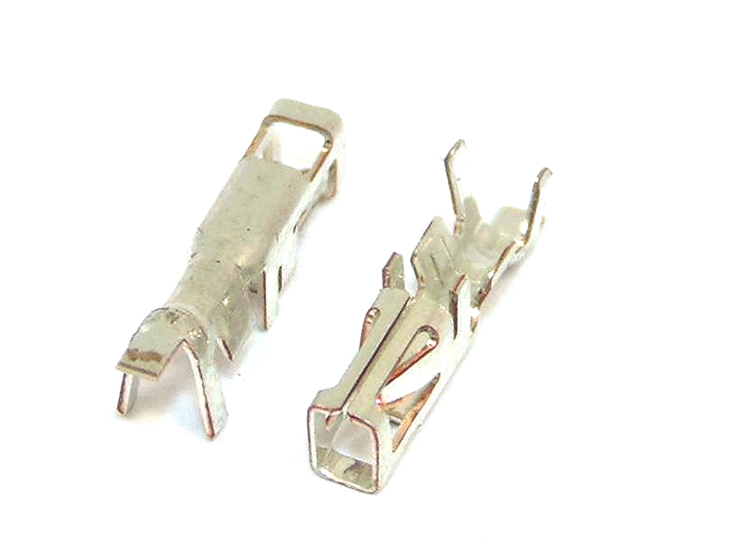

TE Connectivity Grace Inertia 2.5 Female 28-22 Awg

Model:  FH44-19717951-T
Part Number:  1971795-1
Brand:  TE Connectivity
Product Range  Grace Inertia
Gender  Female
Wire Size (min)  0.079mm²
Wire Size (max)  0.38mm²
Wire Size (awg)  28-22 awg
Contact Material  Copper Alloy
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Socket
Current Rating  3A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Wire Insulation Diameter  1.08-1.5mm
Tab Width  2.5mm

Availability

10 in stock

Documents:  Drawing
