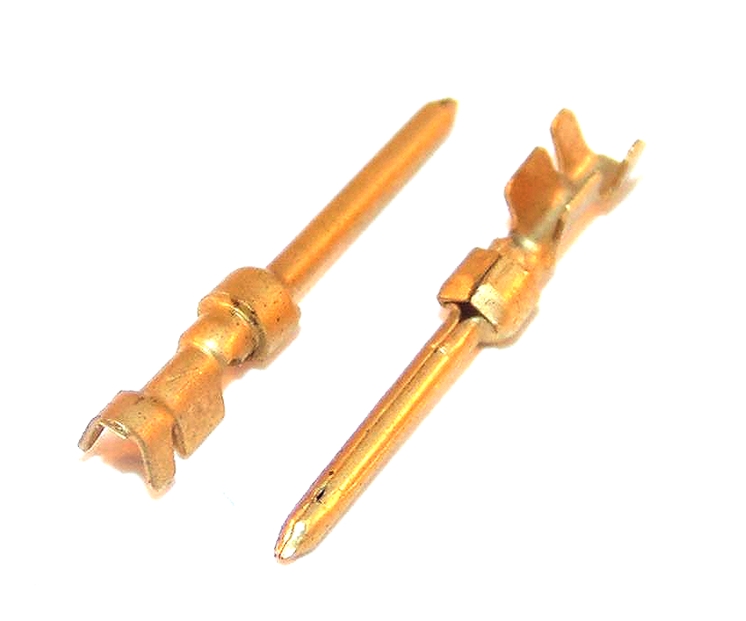

TE Connectivity HD Dsub 20 Male Pin 0.2-0.6mm²

Model:  FQ97-665064-T
Part Number:  66506-4
Brand:  TE Connectivity
Product Range  HD Dsub 20
Gender  Male
Wire Size (min)  0.2mm²
Wire Size (max)  0.6mm²
Wire Size (awg)  24-20 awg
Contact Material  Brass
Contact Plating  Gold
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  2A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -55⁰C

Availability

2,250 in stock

Documents:   Drawing
