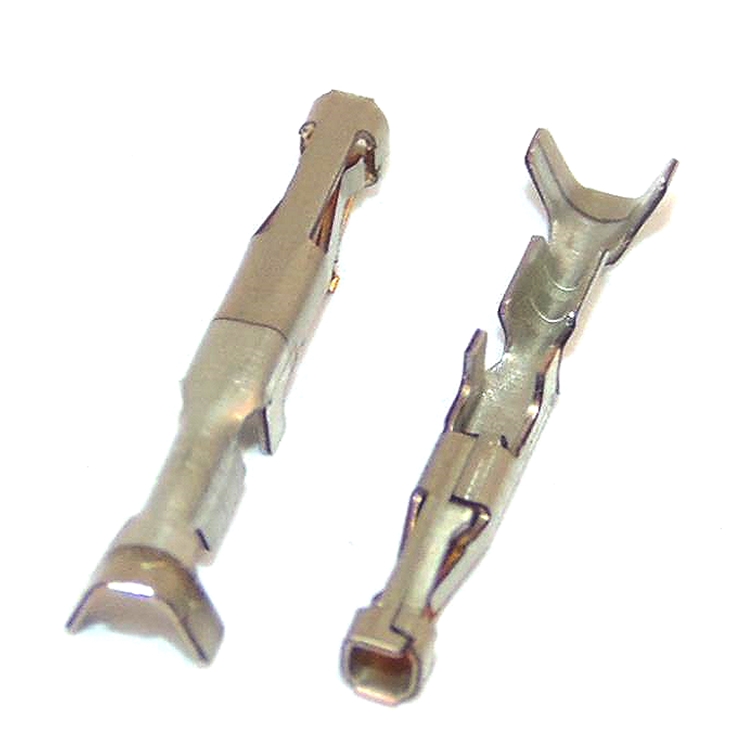

TE Connectivity Mate-N-Lok Female 30-26 Awg

Model:  FH74-17946071-T
Part Number:  1-794607-1
Brand:  TE Connectivity
Product Range:  Mate-N-Lok
Gender:  Female
Wire Size (min):  0.05mm²
Wire Size (max):  0.14mm²
Wire Size (awg):  30-26 Awg
Contact Material:  Bronze
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  5A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  0.89-1.52mm

Documents:  Drawing
