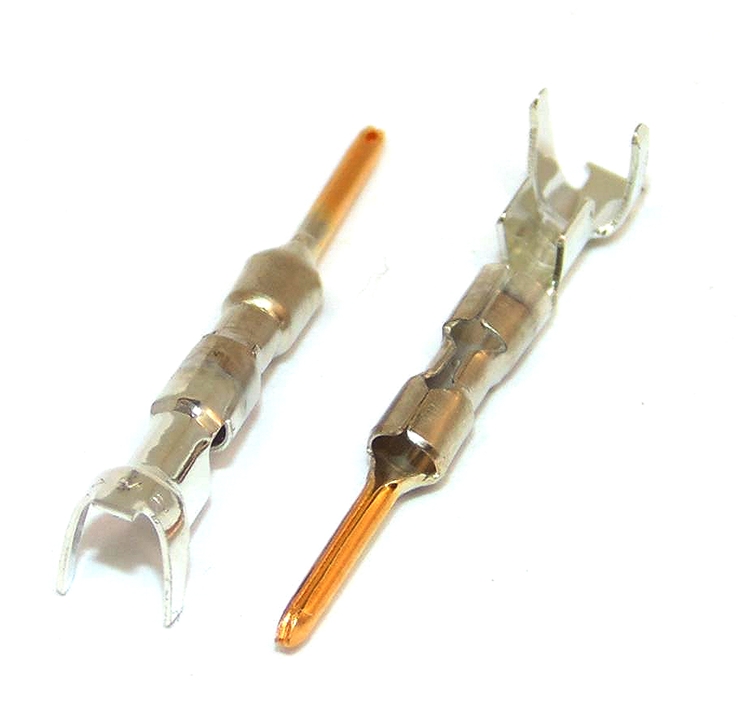

TE Connectivity Mate-N-Lok Male 22-18 Awg

Model:  FH65-17942200-T
Part Number:  1-794220-0
Brand:  TE Connectivity
Product Range:  Mate-N-Lok
Gender:  Male
Wire Size (min):  0.3mm²
Wire Size (max):  0.9mm²
Wire Size (awg):  22-18 Awg
Contact Material:  Brass
Contact Plating:  Gold
Termination Method:  Crimp
Terminal Shape:  Pin
Current Rating:  10.5 A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -20⁰C
Wire Insulation Diameter:  1.5-2.39mm

Availability:

47 in stock

Documents:  Drawing
