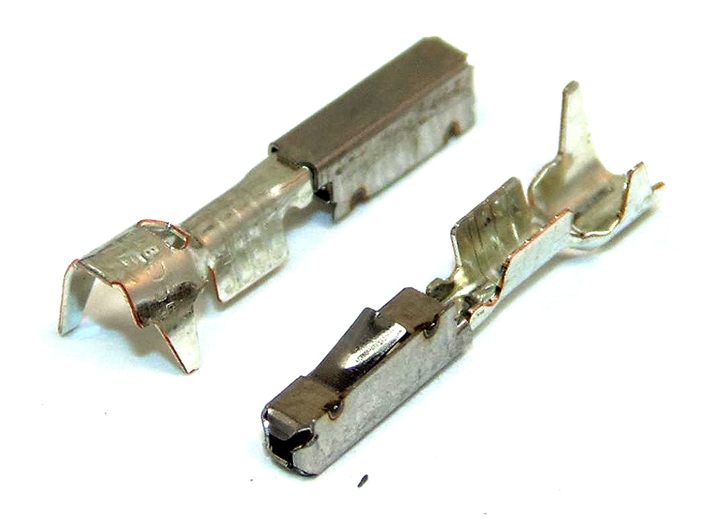

TE Connectivity MQS Female 0.5-0.75mm²

Model:  FJ35-59659061-T
Part Number:  5-965906-1
Brand:  TE Connectivity
Product Range  MQS
Gender  Female
Wire Size (min)  0.5mm²
Wire Size (max)  0.75mm²
Wire Size (awg)  20awg
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Socket
Current Rating  7.5A
Maximum Operating Temperature  120⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  0.63mm(025)

Availability

7,153 in stock

Documents:  Drawing
