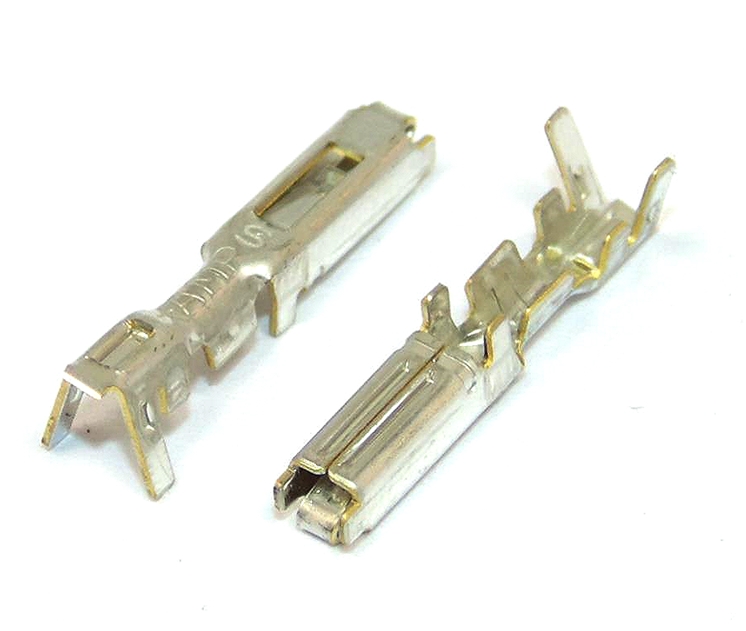

TE Connectivity Multilock 070 Female 0.3-0.5mm²

Model:  FI61-01751241-T
Part Number:  175124-1
Brand:  TE Connectivity
Alternative Part Number  0-175124-1
Product Range  Multilock
Gender  Female
Wire Size (min)  0.3mm²
Wire Size (max)  0.5mm²
Wire Size (awg)  26-22awg
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Receptical
Current Rating  14A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Tab Width  1.8mm(070)

Availability

3,658 in stock

Documents:  Drawing
