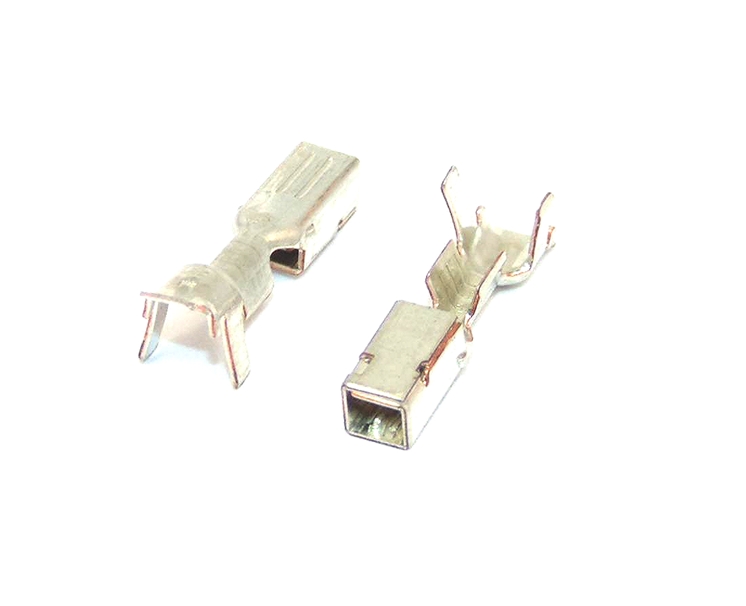

TE Connectivity Power Key 5.0 Female 24-20AWG

Model:  FH42-13763481-T
Part Number:  1376348-1
Brand:  TE Connectivity
Product Range:  Power Key
Gender:  Female
Wire Size (min):  0.2mm²
Wire Size (max):  0.52mm²
Wire Size (awg):  24-20 awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  7A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -30⁰C
Wire Insulation Diameter:  1.7-2.7mm
Tab Width:  5.0mm

Availability:

50 in stock

Documents:  Drawing
