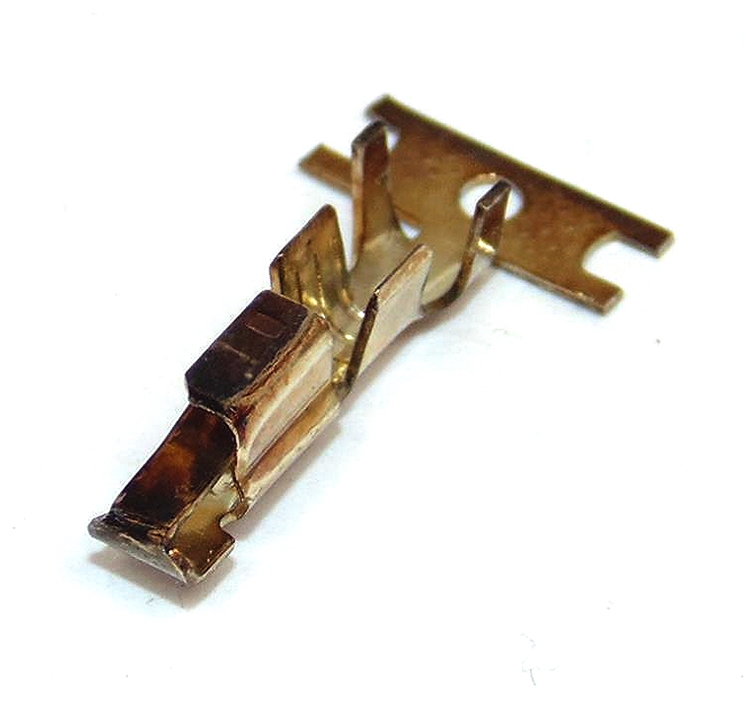

TE Connectivity SL-156 Female 16 Awg

Model:  FH77-36474661-T
Part Number:  3-647466-1
Brand:  TE Connectivity
Product Range:  SL-156
Gender:  Female
Wire Size (min):  1.29mm²
Wire Size (max):  1.42mm²
Wire Size (awg):  16 Awg
Contact Material:  Bronze
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  10A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C
Wire Insulation Diameter:  1.78-2.84mm

Documents:  Drawing
