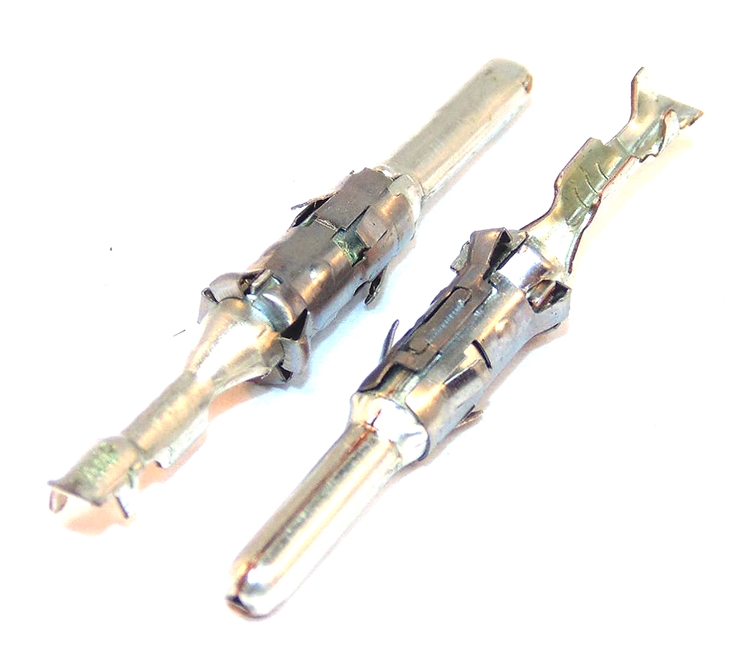

TE Connectivity Stiftkontakt 2.5MMD Male 0.2-0.4mm²

Model:  FQ37-9299621-T
Part Number:  929962-1
Brand:  TE Connectivity
Product Range  Stiftkontakt
Gender  Male
Sealed/Unsealed  Unsealed
Wire Size (min)  0.2mm²
Wire Size (max)  0.4mm²
Wire Size (awg)  24-21 awg
Contact Material  Tin
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  40A
Maximum Operating Temperature  130⁰C
Minimum Operating Temperature  -40⁰C

Availability

297 in stock

Documents:   Datasheet
