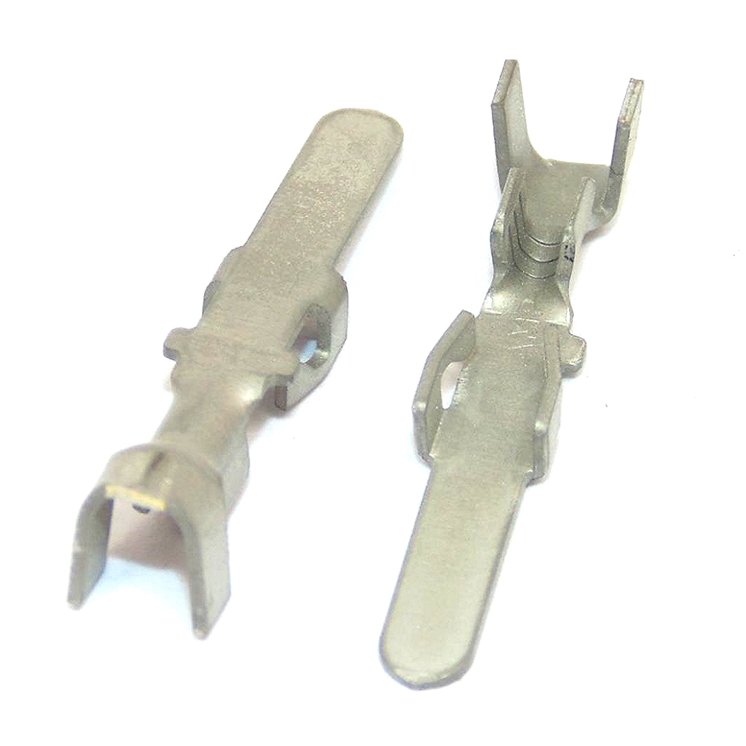

TE Connectivity Timer Male 20-16 Awg

Model:  FH57-12170711-T
Part Number:  1217071-1
Brand:  TE Connectivity
Product Range:  Timer
Gender:  Male
Wire Size (min):  0.51mm²
Wire Size (max):  1.31mm²
Wire Size (awg):  20-16 Awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Flat
Maximum Operating Temperature:  110⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  2.85-3.12mm

Documents:  Drawing
