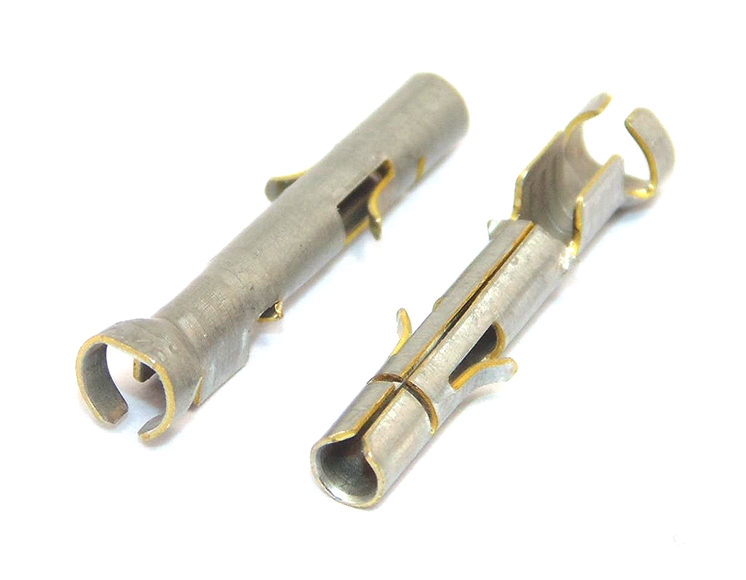

TE Connectivity Universal Mate-N-Lok Female 0.5-2.1mm²

Model:  FH34-9268931-T
Part Number:  926893-1
Brand:  TE Connectivity
Product Range:  Mate-N-Lok
Gender:  Female
Wire Size (min):  0.5mm²
Wire Size (max):  2.1mm²
Wire Size (awg):  20-14awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  19A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C

Availability:

339 in stock

Documents:  Drawing
