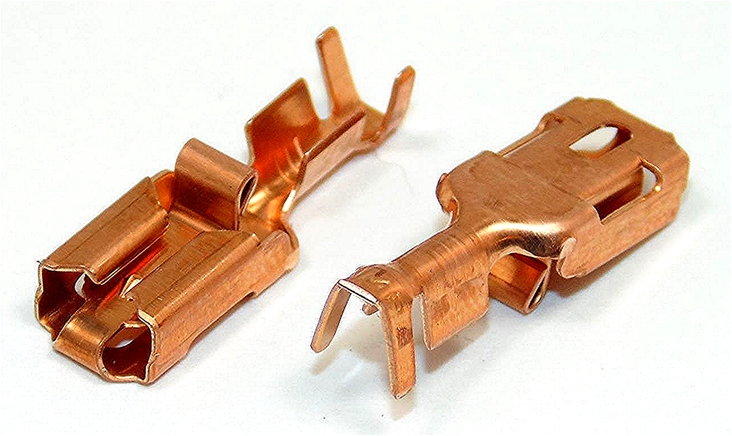

TE Posi-Lock 250 Female Terminal 1.0-2.5mm² (17-13awg)

Model:  EA19-927854-T
Part Number:  927854-2
Brand:  TE Connectivity
Product Range  Posi-Lock 250
Gender  Female
Wire Size (min)  1.0mm²
Wire Size (max)  2.5mm²
Wire Size (awg)  17-13awg
Contact Material  Brass
Termination Method  Crimp
Terminal Shape:  Receptical
Maximum Operating Temperature  110⁰C
Minimum Operating Temperature  -40⁰C
Wire Insulation Diameter  2.11-3.1mm
Tab Width  6.3mm(250)

Availability

1,126 in stock

Documents:  Drawing
