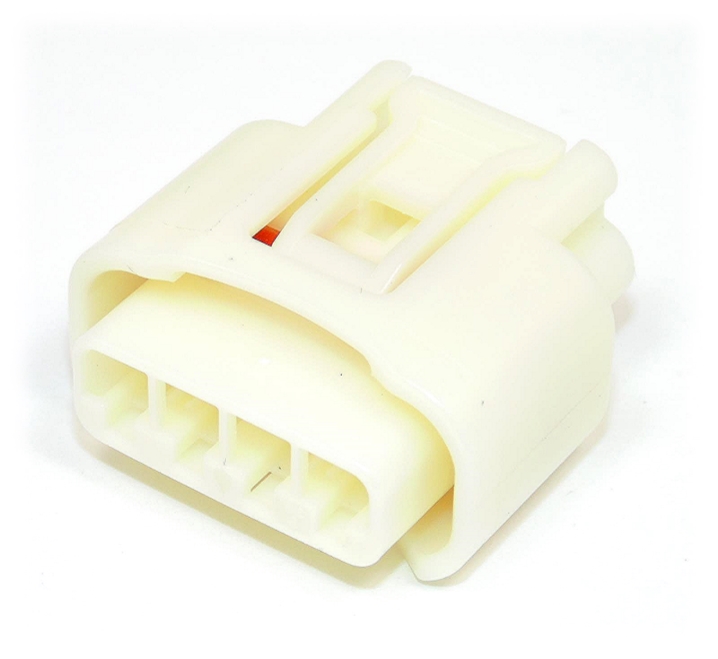

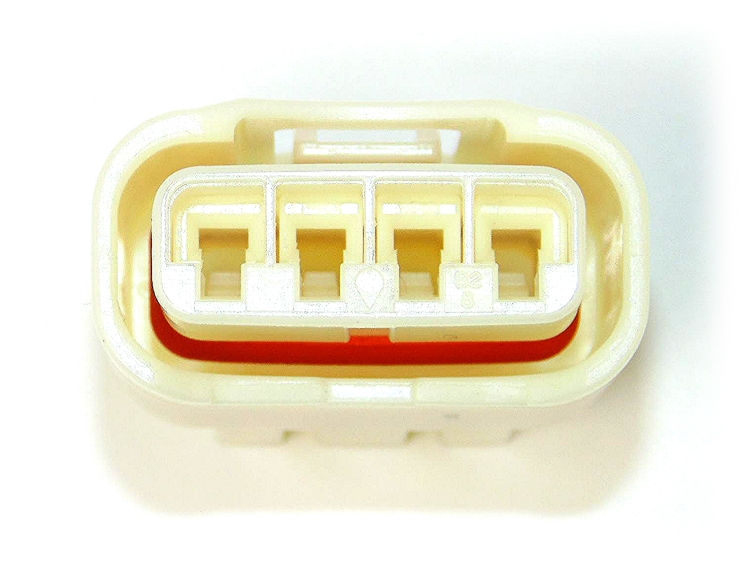

Yazaki 4 way Female 090 II Housing

Yazaki 4 way Female 090 II Housing
Zoom  Zoom
Yazaki 4 way Female 090 II HousingYazaki 4 way Female 090 II HousingYazaki 4 way Female 090 II Housing
Our Price:  £3.15(Exc. 20% VAT)

Model:  DA54-72837449-H
Part Number:  7283-7449
Brand:  Yazaki
Product Range:  090 II
Number of Positions:  4
Number of Rows:  1
Colour:  Natural
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  28.7mm
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

No stock, discontinued

No stock, discontinued

Share



Pricing
1-9 £3.15
10-49 £2.99
50-99 £2.84
100+ £2.52
