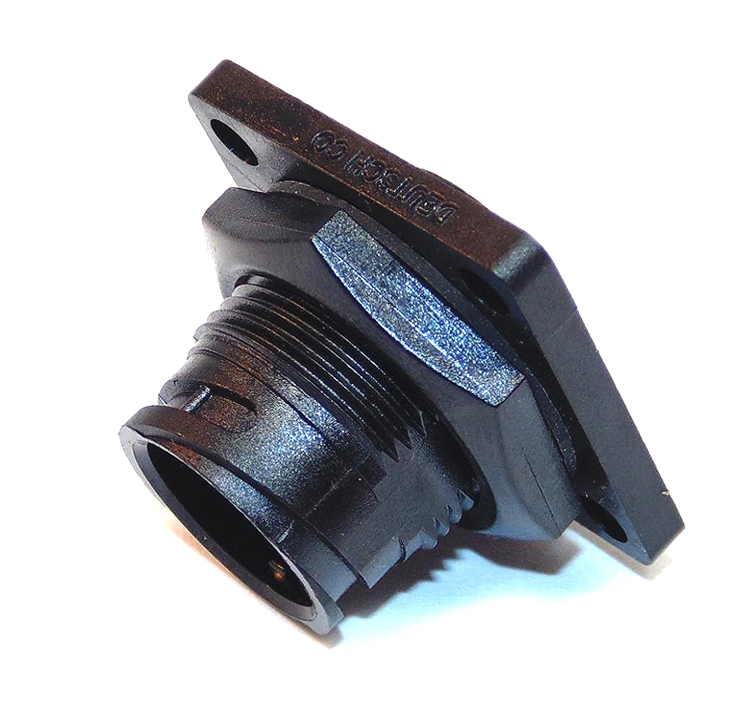

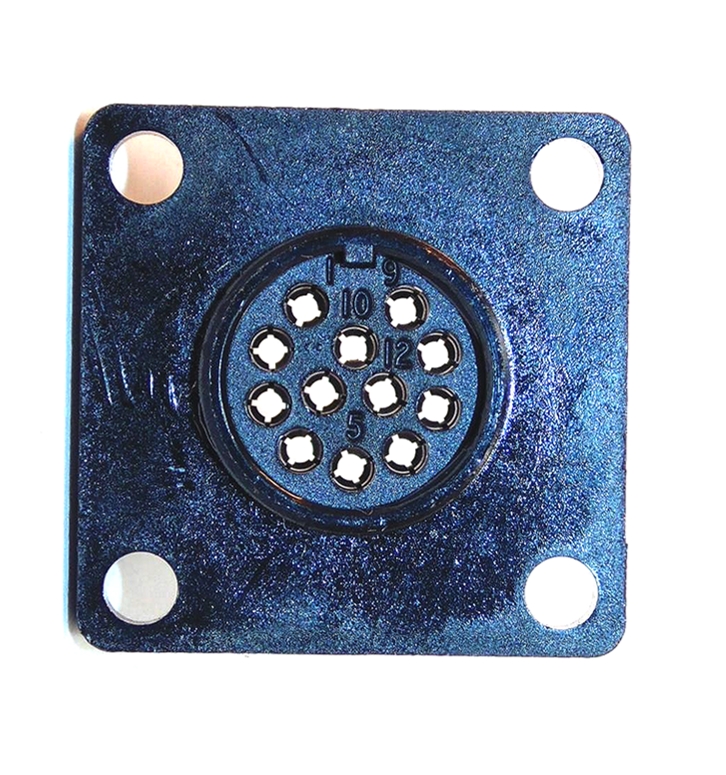

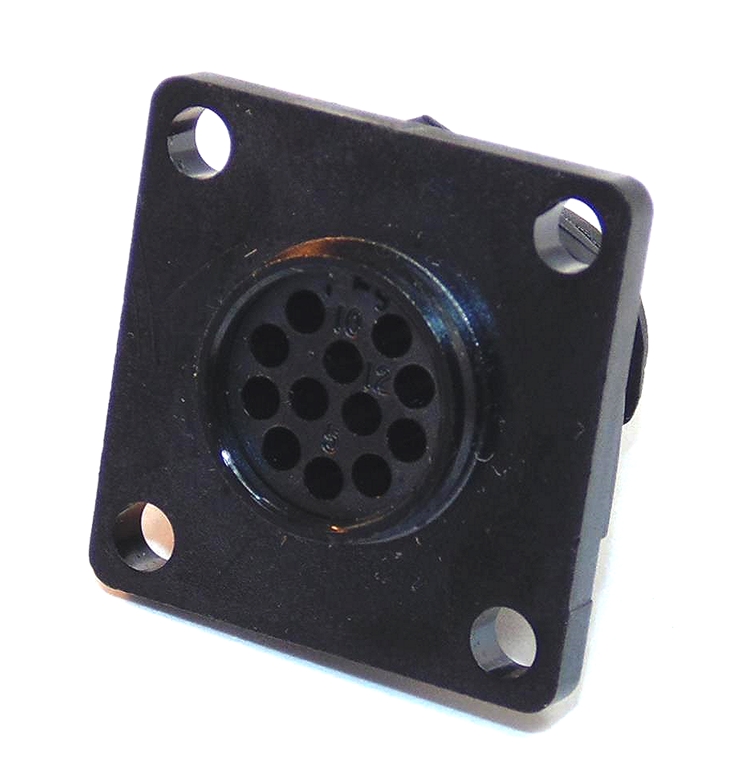

12 Way TE Deutsch IMC 200 Series Flange Mounting for 12 x Size 22 contacts

Model:  FO90-IMC242212X-H
Part Number:  IMC24-2212X
Brand:  TE Connectivity
Product Range:  IMC 200
Number of Positions:  12
Gender (terminal):  Male
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  14.7mm
Termination Method:  Crimp
Housing Material:  Polymer
Current Rating:  5A
Maximum Operating Temperature:  175⁰C
Minimum Operating Temperature:  -55⁰C
Voltage Rating:  750V
Shell Size:  2

Availability:

11 in stock

Documents:   Drawing

                                  Datasheet
