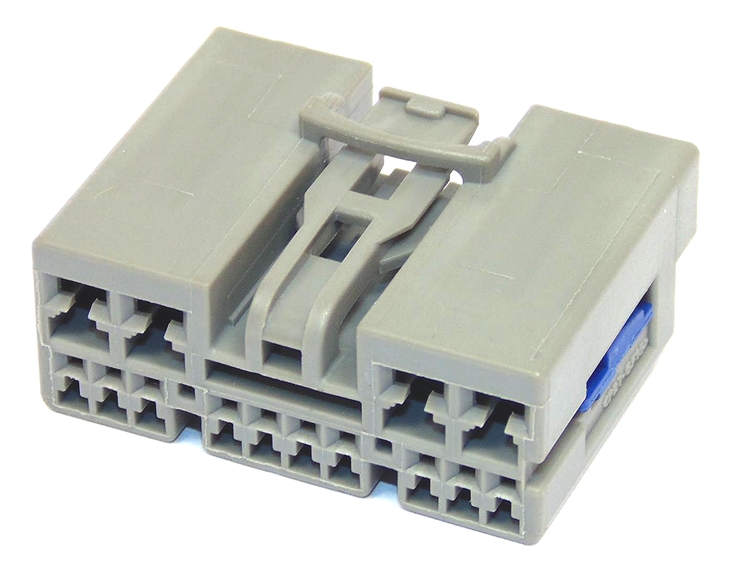

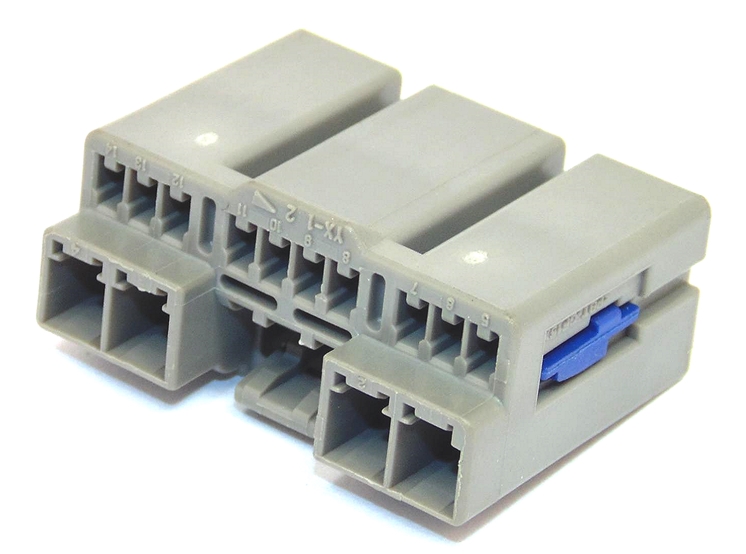

14 Way YAZAKI YESC Connector Hybrid 10x0.64 + 4x2.80mm Female Light Grey

14 Way YAZAKI YESC Connector Hybrid 10x0.64 + 4x2.80mm Female Light Grey
Zoom  Zoom
 14 Way YAZAKI YESC Connector Hybrid 10x0.64 + 4x2.80mm Female Light Grey14 Way YAZAKI YESC Connector Hybrid 10x0.64 + 4x2.80mm Female Light Grey
Our Price:  £4.64(Exc. 20% VAT)
–+

Model:  FH19-7283839840-H
Part Number:  7283-8398-40
Brand:  Yazaki
Product Range  YESC
Number of Positions  14
Number of Rows  2
Gender (terminal)  Female
Colour  Light Grey
Sealed/Unsealed  Unsealed
Longest Dimension (connector face)  32.6mm
Terminal Shape:  Receptical
Housing Material  PBT GF
Tab Width  0.64/2.8mm(025/110)

Availability

2 in stock, no more available

2 in stock, no more available

Share



Documents:  Drawing

.
