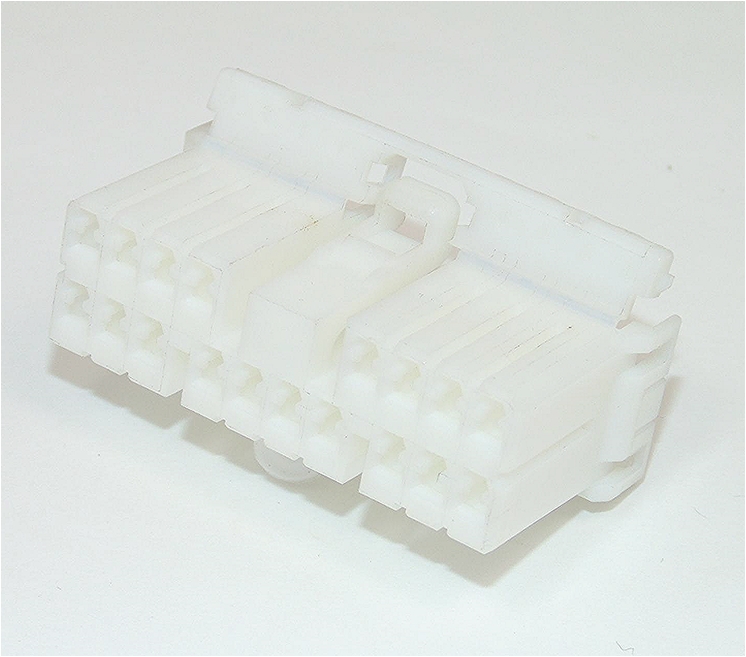

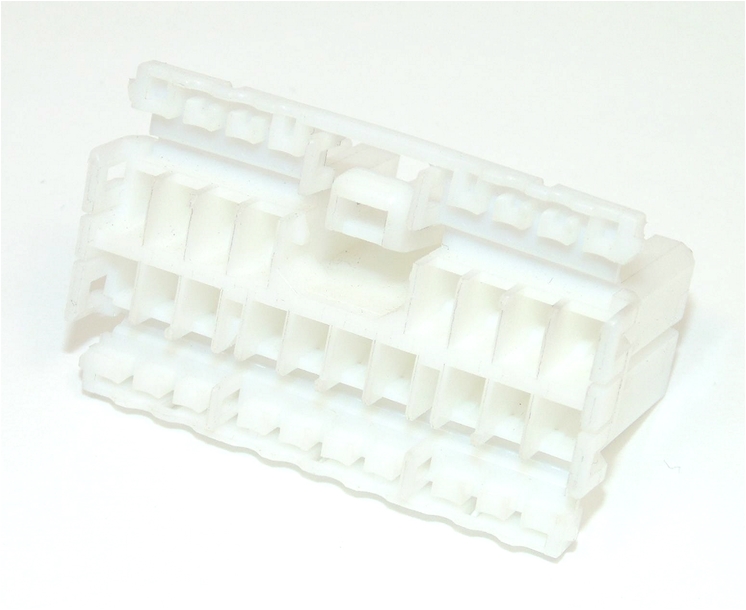

18 Way TE Connectivity Multilock 070 Housing White

18 Way TE Connectivity Multilock 070 Housing White
Zoom  Zoom
 18 Way TE Connectivity Multilock 070 Housing White18 Way TE Connectivity Multilock 070 Housing White
Our Price:  £1.47(Exc. 20% VAT)

Model:  FB24-1738531-H
Part Number:  173853-1
Brand:  TE Connectivity
Product Range  Multilock
Number of Positions  18
Number of Rows  2
Gender (terminal)  Female
Colour  White
Sealed/Unsealed  Unsealed
Longest Dimension (connector face)  40.0mm
Terminal Shape:  Receptical
Housing Material  PBT
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Tab Width  070 (1.8mm)

Availability

No stock, discontinued

No stock, discontinued



Pricing

1-24 £1.47
25-49 £1.18
50-99 £1.03
100+ £0.74













Documents:  Drawing


.
