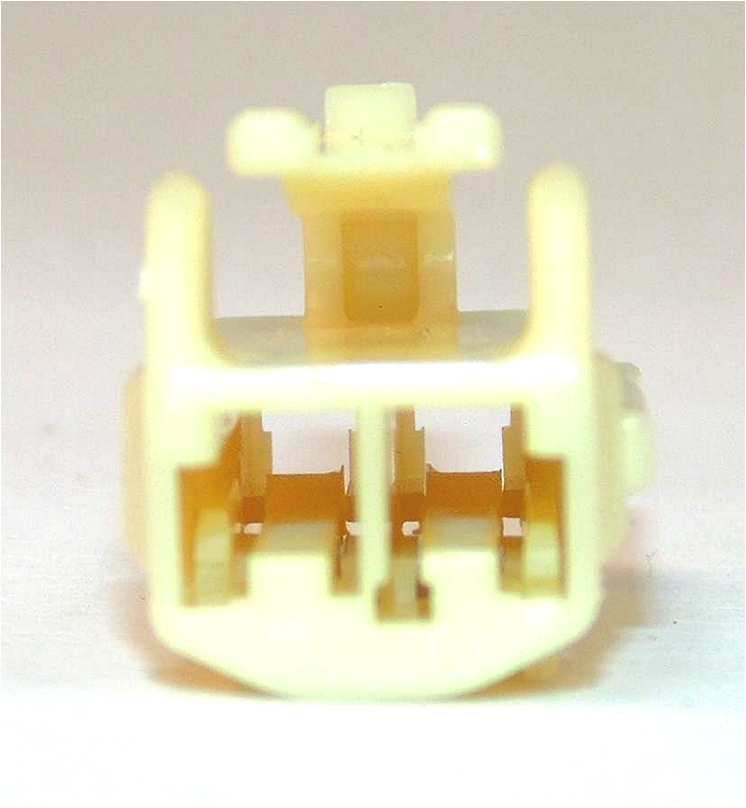

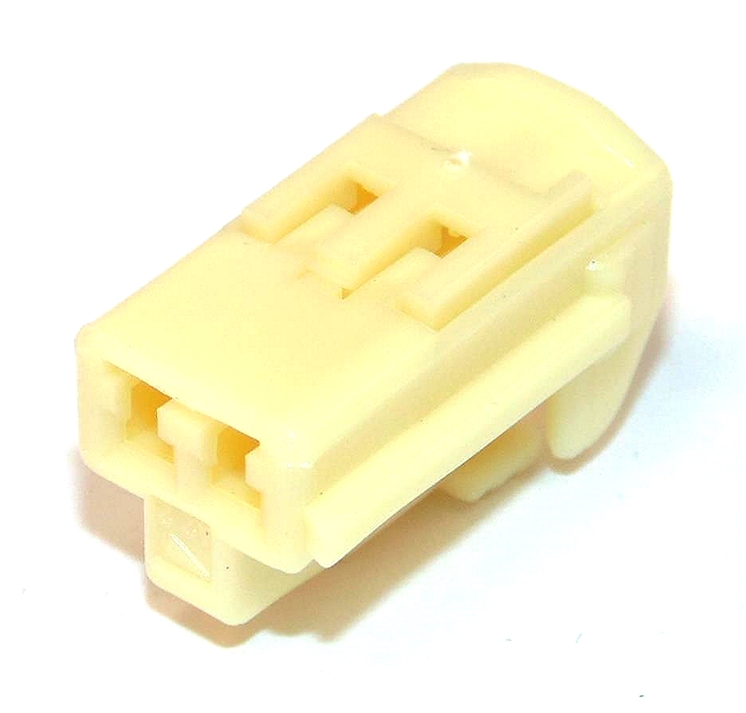

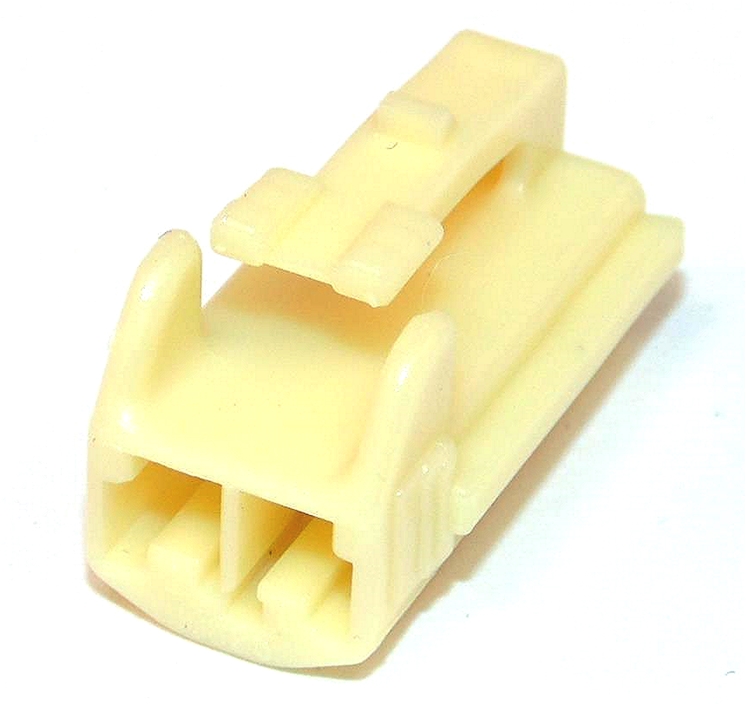

2 Way Yazaki 2.3II(090II) Female 2.3mm(090) Natural

2 Way Yazaki 2.3II(090II) Female 2.3mm(090) Natural
Zoom  Zoom
2 Way Yazaki 2.3II(090II) Female 2.3mm(090) Natural2 Way Yazaki 2.3II(090II) Female 2.3mm(090) Natural2 Way Yazaki 2.3II(090II) Female 2.3mm(090) Natural
Our Price:  £2.43(Exc. 20% VAT)
–+

Model:  FR21-72831020-H
Part Number:  7283-1020
Brand:  Yazaki
Product Range:  2.3II (090II)
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Natural
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  10.7mm
Terminal Shape:  Receptical
Housing Material:  Heat-resistance Nylon
Maximum Operating Temperature:  80⁰C
Minimum Operating Temperature:  -30⁰C
Tab Width:  2.3mm(090)

Availability:

148 in stock

148 in stock

Share



Pricing
1-9 £2.43
10-49 £1.94
50-99 £1.70
100+ £1.22













Documents:    Datasheet


Mating part numbers: 7282-1020, 7282-1022 & 7282-8823
