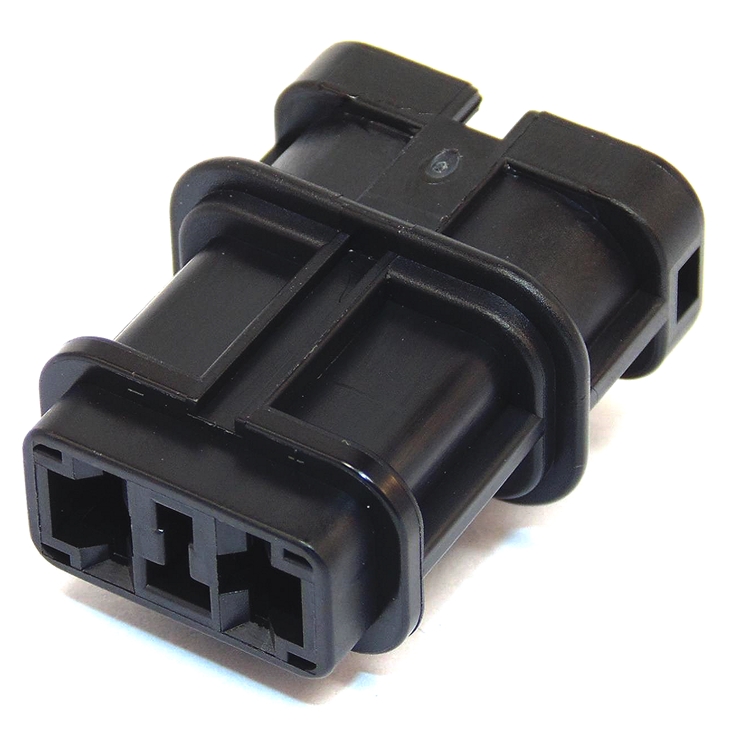

2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Female Black

2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Female Black
Zoom  Zoom
 2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Female Black2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Female Black
Our Price:  £2.21(Exc. 20% VAT)
–+

Model:  FH03-7123642330-H
Part Number:  7123-6423-30
Brand:  Yazaki
Product Range:  58 Connectors
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  24.1mm
Terminal Shape:  Receptical
Housing Material:  PBT
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  6.3mm(250)

Availability:

85 in stock

85 in stock

Share



Documents:  Drawing

.

Related Products
2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Male Grey Kit Inc Terminals and Seals

2 Way YAZAKI 58 Connectors X Type 6.3mm(250) Male Grey Kit Inc Terminals and Seals£3.21

Brand:  Yazaki
Product Range: 58 Connectors 6.3mm(250)
Number of Positions: 2
Gender (terminal):  Male

Wire Seal Yazaki 58 Connectors Black 0.5-1.25mm²

Wire Seal Yazaki 58 Connectors Black 0.5-1.25mm²£0.75

Brand:  Yazaki
Product Range: 58 Connectors
Wire Size:  0.5-1.25 mm²
Maximum Cavity Diameter:  9.8mm
Minimum Cavity Diameter:  8.8mm
Yazaki 58 Connectors X Type Secondary Locking Clip Natural

Yazaki 58 Connectors X Type Secondary Locking Clip Natural£0.18

Brand:  Yazaki
Product Range: 58 Connector X Type
Number of Positions: 2


YAZAKI, 58 connectors Female, Brass Contact, 6.3mm(250) 0.5-1.25mm²

YAZAKI, 58 connectors Female, Brass Contact, 6.3mm(250) 0.5-1.25mm²£0.53

Brand:  Yazaki
Product Range:  58 Connectors 6.3mm(250)
Wire Size:  0.5-1.25mm² (18awg)
Gender:  Female
YAZAKI, 58 connectors Female, Contact, 6.3mm(250) 0.5-1.25mm²

YAZAKI, 58 connectors Female, Contact, 6.3mm(250) 0.5-1.25mm²£0.53

Brand:  Yazaki
Product Range:  58 Connectors 6.3mm(250)
Wire Size:  0.5-1.25mm² (18awg)
Gender:  Female
