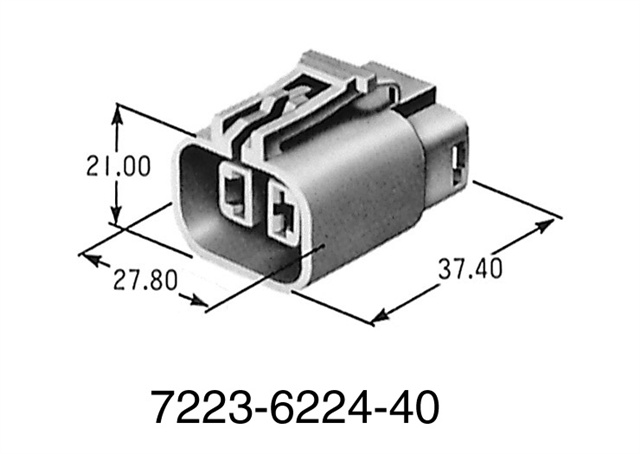

2 way Yazaki 58 X Housing Female Kit inc. housing, Lock, Terminals and Seals

2 way Yazaki 58 X Housing Female Kit inc. housing, Lock, Terminals and Seals
Zoom  Zoom
Our Price:  £2.73(Exc. 20% VAT)

Model:  EA04-72236224-K
Part Number:  7223-6224
Brand:  Yazaki
Product Range:  58 Connectors
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  23.6mm
Housing Material:  Nylon 66
Current Rating:  20A
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  6.3mm(250)

Availability:

No stock, discontinued

No stock, discontinued

Share



Pricing
1-9 £2.73
10-49 £2.18
50-99 £1.91
100+ £1.64













Documents:  Datasheet

.

Related Products
YAZAKI, 58 connectors Female, Contact, 6.3mm(250) 0.5-1.25mm²

YAZAKI, 58 connectors Female, Contact, 6.3mm(250) 0.5-1.25mm²£0.53

Brand:  Yazaki
Product Range:  58 Connectors 6.3mm(250)
Wire Size:  0.5-1.25mm² (18awg)
Gender:  Female
