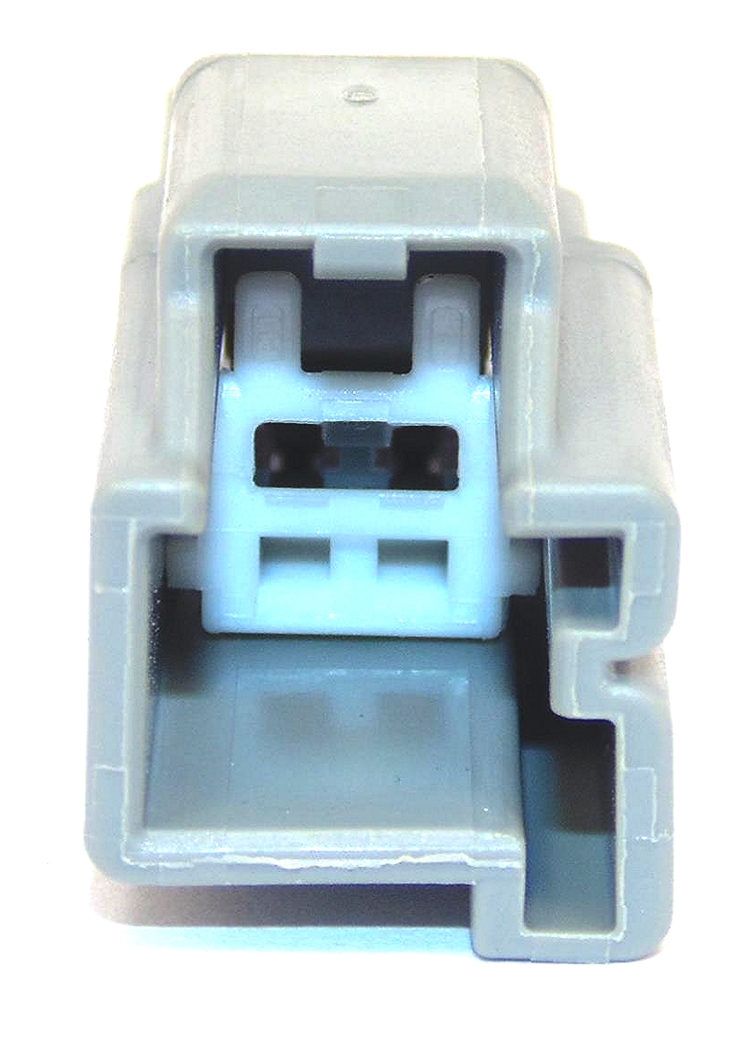

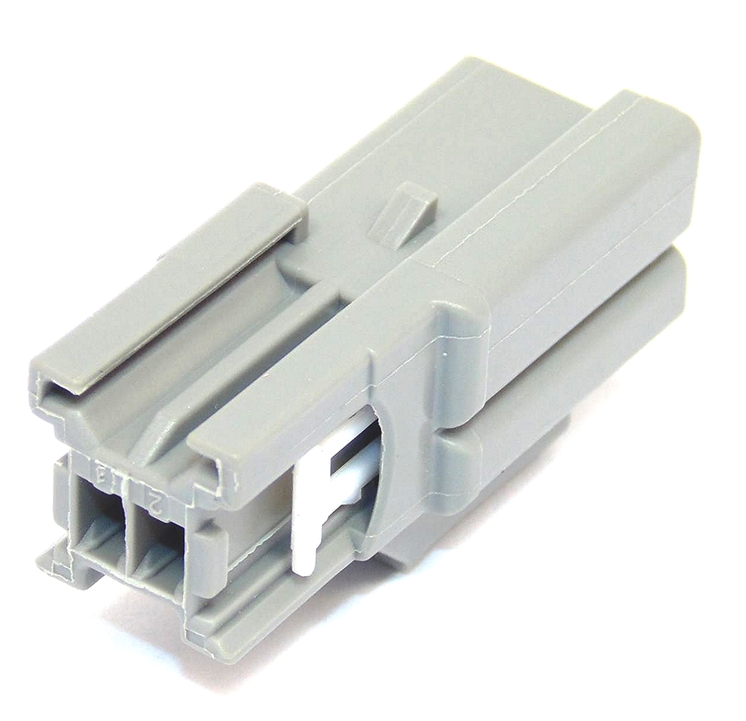

2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Light Grey

2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Light Grey
Zoom  Zoom
2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Light Grey2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Light Grey2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Light Grey
Our Price:  £2.15(Exc. 20% VAT)
–+

Model:  FG76-7282644340-H
Part Number:  7282-6443-40
Brand:  Yazaki
Product Range  YES/YESC Kaizen
Number of Positions  2
Number of Rows  1
Gender (terminal)  Male
Colour  Light Grey
Sealed/Unsealed  Unsealed
Longest Dimension (connector face)  13.7mm
Terminal Shape:  Flat
Housing Material  PBT
Maximum Operating Temperature  100⁰C
Minimum Operating Temperature  -40⁰C
Tab Width  1.5mm(060)

Availability

60 in stock

60 in stock

Share



Pricing
1-49 £2.15
50-99 £1.72
100-499 £1.51
500+ £1.29













Documents:  Drawing

.
