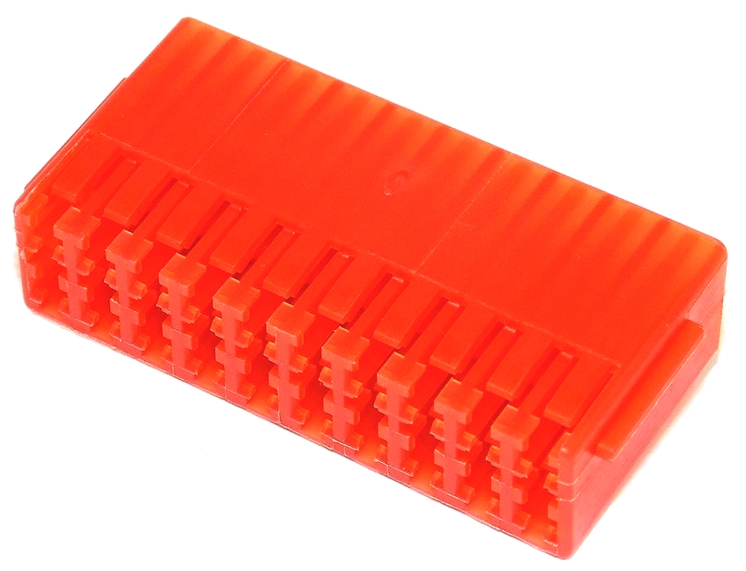

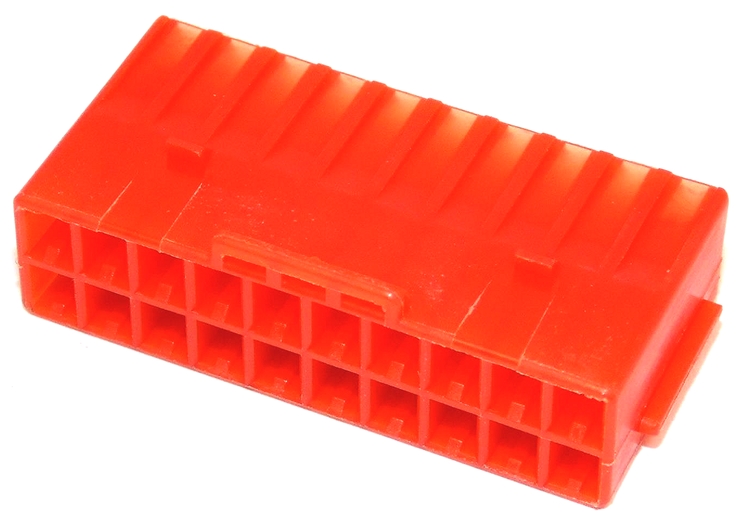

20 Way Sumitomo HM Series Female 2.3mm(090) Orange

20 Way Sumitomo HM Series Female 2.3mm(090) Orange
Zoom  Zoom
 20 Way Sumitomo HM Series Female 2.3mm(090) Orange20 Way Sumitomo HM Series Female 2.3mm(090) Orange
Our Price:  £2.84(Exc. 20% VAT)
–+

Model:  FE71-64000016-H
Part Number:  6400-0016
Brand:  Sumitomo
Product Range:  HM Series
Number of Positions:  20
Number of Rows:  2
Gender (terminal):  Female
Colour:  Orange
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  40.9mm
Terminal Shape:  Receptical
Housing Material:  66 Nylon
Tab Width:  2.3mm(090)

Availability:

113 in stock

113 in stock

Share



Pricing
1-9 £2.84
10-49 £2.56
50-99 £2.27
100+ £2.13













Documents:  Drawing

.
